Rear Seat Back Cushion Cover and Pad Replacement (with 60 percent seat) Seats Rear

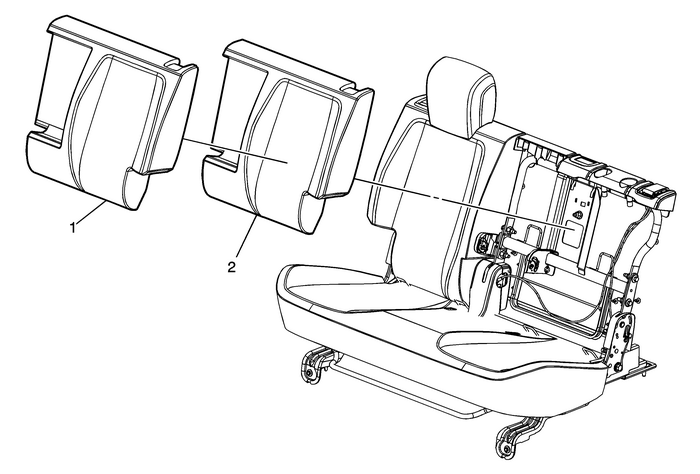

Rear Seat Back Cushion Cover and Pad Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and Installation.Remove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover Replacement.Remove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover Replacement.Remove the rear seat back cushion latch handle. Refer toRear Seat Back Cushion Latch Release Handle Replacement.Remove the rear seat head restraint. Refer toRear Seat Head Restraint Replacement.Remove the rear seat back cushion panel. Refer toRear Seat Back Cushion Panel Replacement.Remove the rear seat head restraint guide. Refer toRear Seat Head Restraint Guide Replacement.Remove the rear seat shoulder belt guide. Refer toRear Seat Shoulder Belt Guide Opening Bezel Replacement.Remove the rear seat armrest. Refer toRear Seat Armrest Replacement.

1

Rear Seat Back Cushion Cover

ProcedureRemove the rear seat center belt anchor bolt. Refer toRear Seat Center Belt ReplacementRelease the seat back cover by disengaging the bottomJ-strip.Unzip the cover, the zipper is located on the armrest side ofthe cover.Lift the seat back trim cover off of the rear seat backframe.Feed the seat belt webbing and the escutcheon through thetrim cover.

2

Rear Seat Back Cushion Pad

Rear Seat Back Cushion Cover and Pad Replacement (with 40 percent seat) Seats Rear
Rear Seat Back Cushion Cover and Pad ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and InstallationRemove the rear seat back cushion pa ...

Rear Seat Back Cushion Frame Replacement (with 60 percent seat) Seats Rear
Rear Seat Back Cushion Frame ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear seat. Refer toRear Seat Removal and Installation.Remove the rear seat recliner inner finish cover. Re ...
