Rear Seat Back Cushion Cover and Pad Replacement (with 40 percent seat) Seats Rear

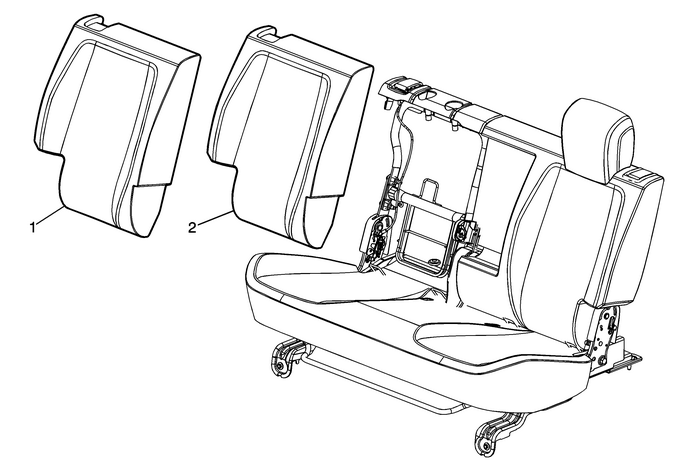

Rear Seat Back Cushion Cover and Pad Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and InstallationRemove the rear seat back cushion panel. Refer toRear Seat Back Cushion Panel ReplacementRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover ReplacementRemove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover ReplacementRemove the rear seat back cushion latch handle. Refer toRear Seat Back Cushion Latch Release Handle ReplacementRemove the rear seat head restraint. Refer toRear Seat Head Restraint ReplacementRemove the rear seat head restraint guide. Refer toRear Seat Head Restraint Guide Replacement

1

Rear Seat Back Cushion Cover

ProcedureRelease the seat back cover by disengaging the bottomJ-strip.Lift the seat back trim cover off of the rear seat backframe.

2

Rear Seat Back Cushion Pad

Rear Seat Armrest Replacement Seats
Rear Seat Armrest ReplacementCalloutComponent Name1Rear Seat Armrest CoverTip:Pull up on the trim cover to gain access to the armrestbolt.2Rear Seat Armrest BoltCaution:Refer toFastener Caution.Tighte ...

Rear Seat Back Cushion Cover and Pad Replacement (with 60 percent seat) Seats Rear
Rear Seat Back Cushion Cover and Pad ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and Installation.Remove the rear seat recliner outer ...
