Rear Seat Armrest Replacement Seats

Rear Seat Armrest Replacement

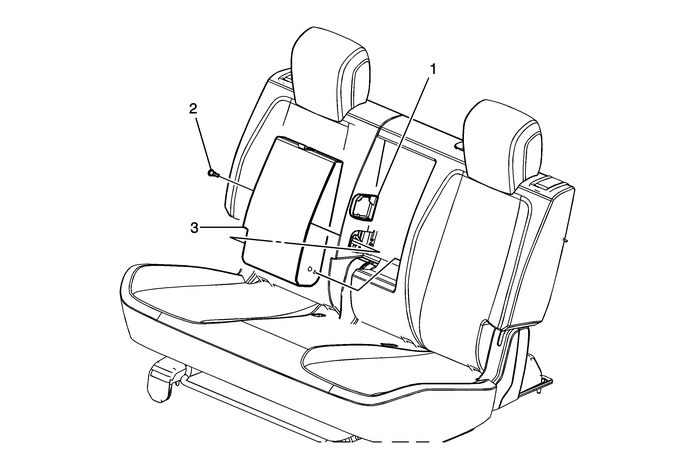

Callout

Component Name

1

Rear Seat Armrest Cover

Tip:Pull up on the trim cover to gain access to the armrestbolt.

2

Rear Seat Armrest Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

3

Rear Seat Armrest Assembly

Rear Seat Armrest Mount Panel Replacement Seats
