Rear Seat Armrest Mount Panel Replacement Seats

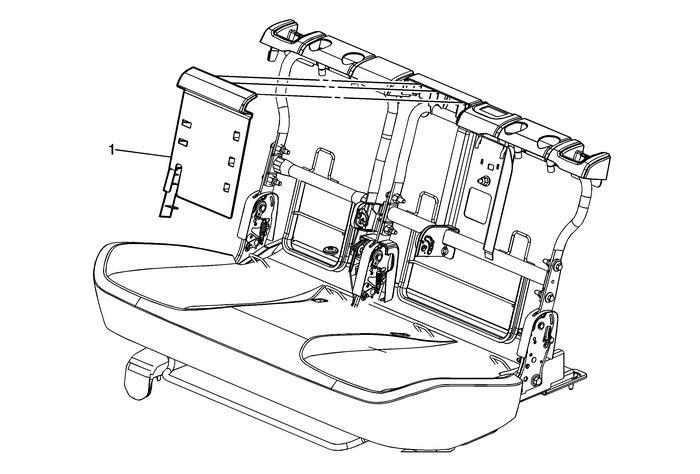

Rear Seat Armrest Mount Panel Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat armrest assembly. Refer toRear Seat Armrest ReplacementRemove the rear seat back cushion cover and pad. Refer toRear Seat Back Cushion Cover and Pad Replacement

1

Rear Seat Armrest Mount Panel

Rear Seat Adjuster Replacement Seats Rear
Rear Seat Adjuster ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and InstallationRemove the rear seat recliner outer finish cover. Refe ...

Rear Seat Armrest Replacement Seats
Rear Seat Armrest ReplacementCalloutComponent Name1Rear Seat Armrest CoverTip:Pull up on the trim cover to gain access to the armrestbolt.2Rear Seat Armrest BoltCaution:Refer toFastener Caution.Tighte ...
