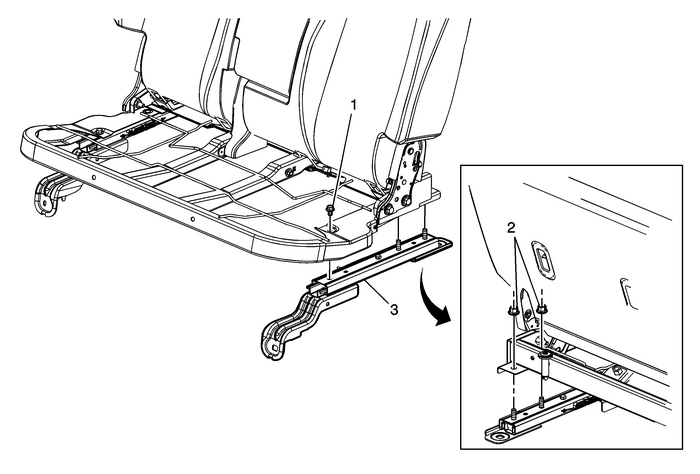

Rear Seat Adjuster Replacement Seats Rear

Rear Seat Adjuster Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear seat assembly. Refer toRear Seat Removal and InstallationRemove the rear seat recliner outer finish cover. Refer toRear Seat Recliner Outer Finish Cover ReplacementRemove the rear seat outer recliner rear finish cover. RefertoRear Seat Outer Recliner Rear Finish Cover ReplacementRemove the rear seat cushion cover and pad. Refer toRear Seat Cushion Cover and Pad ReplacementRemove the rear seat adjuster Handle. Refer toRear Seat Adjuster Handle Replacement

1

Rear Seat Adjuster Bolt

Caution:Refer toFastener Caution.

Tighten

90-Y(66-lb-ft)

2

Rear Seat Adjuster Nut (Qty:-2)

Tighten

75-Y(55-lb-ft)

3

Rear Seat Adjuster
