Rear Seat Adjuster Handle Replacement Seats Rear

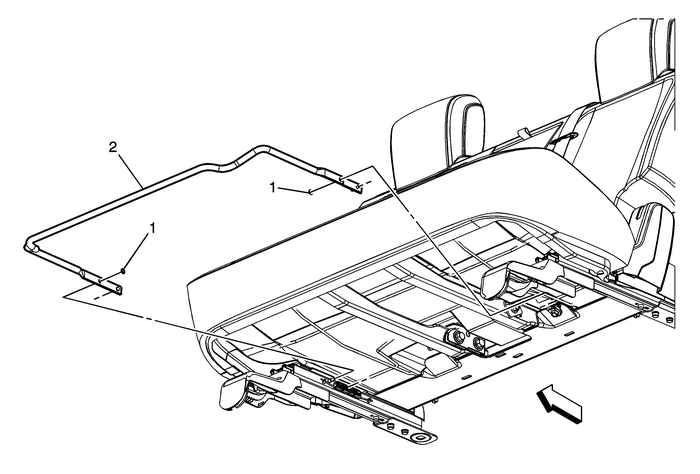

Rear Seat Adjuster Handle Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear seat. Refer toRear Seat Removal and Installation

1

Rear Seat Adjuster Handle Fastener

2

Rear Seat Adjuster Handle
