Chevrolet Equinox Service Manual: Lumbar Adjustment Seats Front

Chevrolet Equinox Service Manual / Body / Seating / Lumbar Adjustment Seats Front

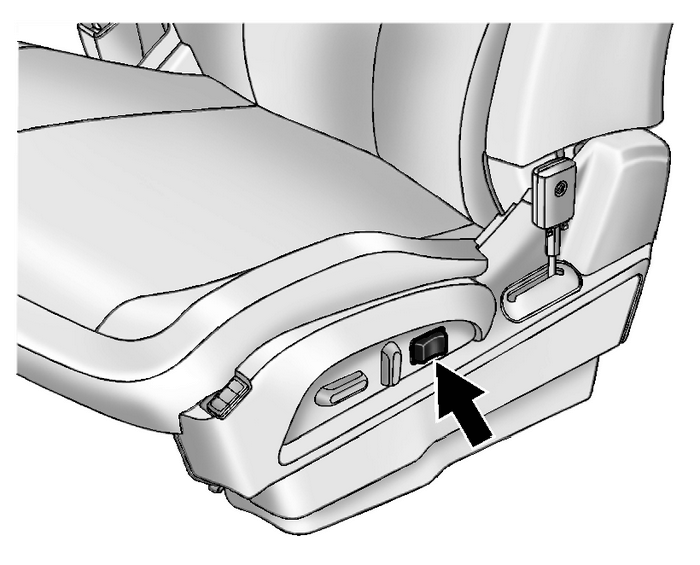

Power LumbarEight-Way Power Seat Shown, Four-Way Similar

Lumbar Adjustment Seats Front

If available, press and hold the front or rear of the switch to increase or decreaselumbar support. Release the switch when the seatback reaches the desired level oflumbar support.
