Fuel Economy Switch Replacement Gauges

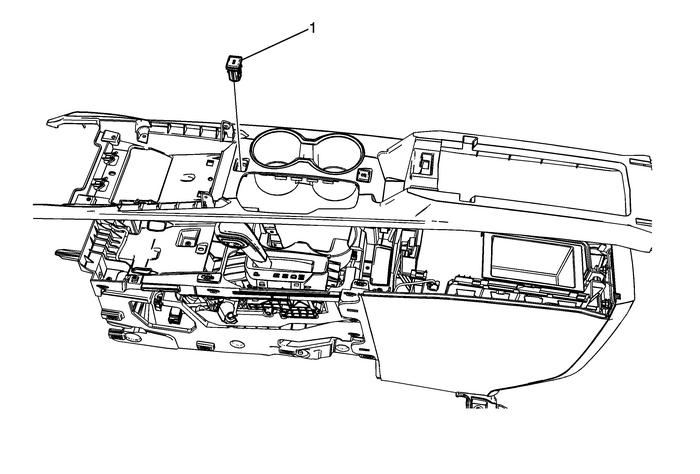

Fuel Economy Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the front floor lower console side finish cover, rightside. Refer toFront Floor Lower Console Side Finish Cover Replacement - Right Side.

1

Fuel Economy Indicator Switch

ProcedureReach under the economy switch and apply a firm upwardpressure on it to release the fastening tabs.Disconnect the electrical connector.
