Instrument Panel Center Air Outlet Duct Replacement Dashboard Assembly

Instrument Panel Center Air Outlet Duct Replacement

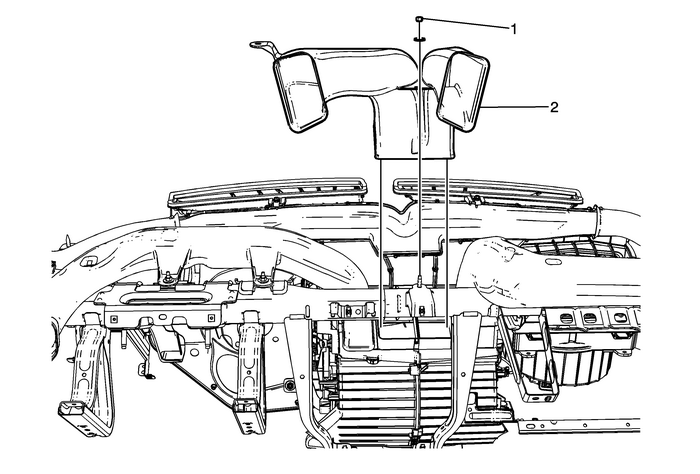

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim pad retainer. Refer toLower Trim Pad Retainer Replacement.

1

Center Air Outlet Duct Fastener (Qty:-1)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

2

Center Air Outlet Duct
