Front Lower Grille Replacement (Terrain) Front Grille

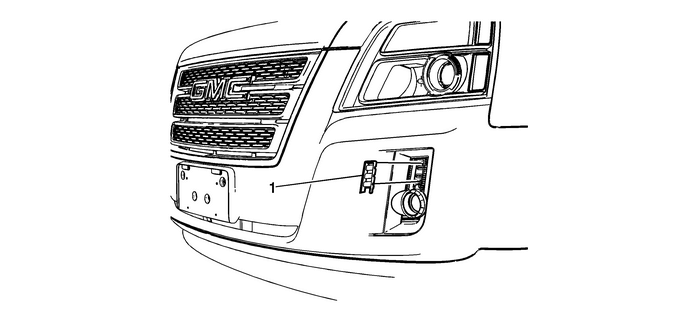

Front Lower Grille Replacement

Callout

Component Name

Preliminary Procedure

Remove the front fog lamp bezel. Refer toFront Fog Lamp Bezel Replacement.

1

Radiator Lower Grille

Procedure

Using a small flat-bladed tool, depress the tabs on the backside of the grille, releasing the radiator lower grille from thefront fog lamp bezel.

Front Lower Grille Replacement Front Grille
Front Lower Grille ReplacementCalloutComponent NamePreliminary ProcedureRemove the front bumper fascia. Refer toFront Bumper Fascia Replacement.1Push On Nut (Qty:-2)Tip:Remove and replace the two push ...

Front Lower Outer Grille Replacement Front Grille
Front Lower Outer Grille ReplacementCalloutComponent NamePreliminary ProcedureRemove the front bumper fascia assembly. Refer toFront Bumper Fascia Replacement.1Radiator Lower Outer Grille Assembly Scr ...
