Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 2) Automatic Transmission Unit Automatic Clutches

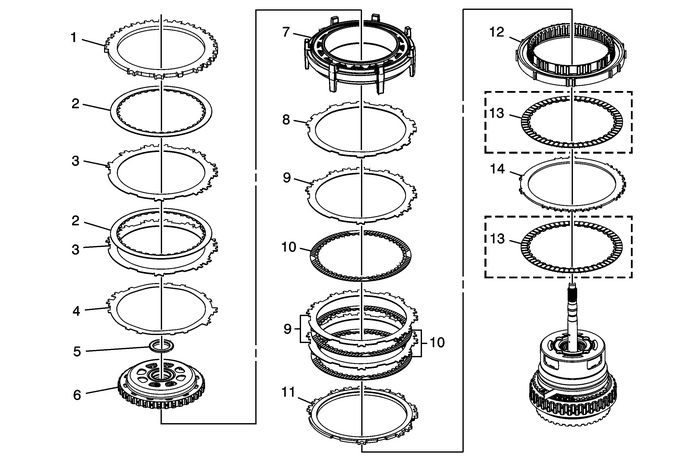

Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, OutputSun Gear, and 2-6 Clutch Plate Disassemble

Callout

Component Name

1

1–2–3–4 Clutch Backing Plate

2

1–2–3–4 Clutch Plate Assembly-(Qty:-2)

3

1–2–3–4 Clutch Plate-(Qty:-2)

4

1–2–3–4 Clutch Waved Plate

5

Output Sun Gear Thrust Bearing Assembly

Note:The sun gear thrust bearing may be stuck to the driven sprocket hub.

6

Output Sun Gear Assembly

7

Low-Reverse and 1–2–3–4 Clutch Housing Assembly

8

Low and Reverse Clutch Apply Plate

9

Low and Reverse Clutch Plate-(Qty:-3)

10

Low and Reverse Clutch Plate Assembly-(Qty:-3)

11

Low and Reverse Clutch Backing Plate

12

Low and Reverse Clutch Assembly-(OWC)

13

2–6 Clutch Plate Assembly-(Qty:-2)---Model Dependent

Note:The number of grooves in the clutch plate friction material varies depending on model.

14

2–6 Clutch Plate-(Qty:-1)
