Front Lower Outer Grille Replacement Front Grille

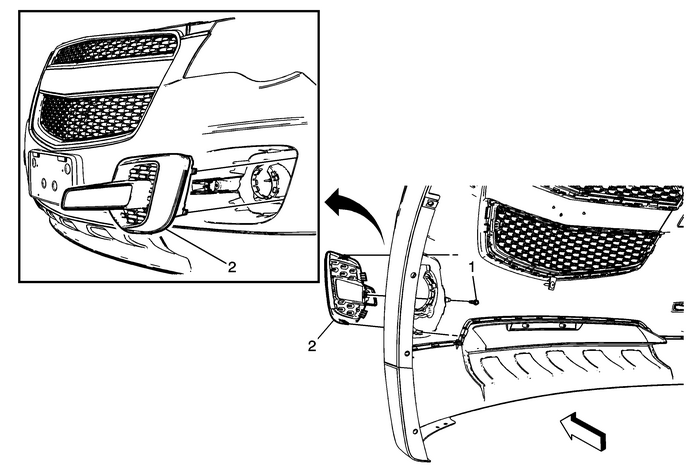

Front Lower Outer Grille Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia assembly. Refer toFront Bumper Fascia Replacement.

1

Radiator Lower Outer Grille Assembly Screw

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

2

Radiator Lower Outer Grille Assembly

Procedure

Release the six outer grille assembly tabs from the frontbumper upper fascia opening and push outward on the lower outergrille to remove.

Front Lower Grille Replacement (Terrain) Front Grille
Front Lower Grille ReplacementCalloutComponent NamePreliminary ProcedureRemove the front fog lamp bezel. Refer toFront Fog Lamp Bezel Replacement.1Radiator Lower GrilleProcedureUsing a small flat-blad ...

Front Side Door Auxiliary Weatherstrip Replacement Weatherstripping
Front Side Door Auxiliary Weatherstrip ReplacementCalloutComponent NamePreliminary ProcedureRemove the body hinge pillar trim panel. Refer toBody Hinge Pillar Trim Panel Replacement.1Front Side Door A ...
