Instrument Panel Accessory Trim Plate Replacement (Terrain) Consoles Center Console

Instrument Panel Accessory Trim Plate Replacement

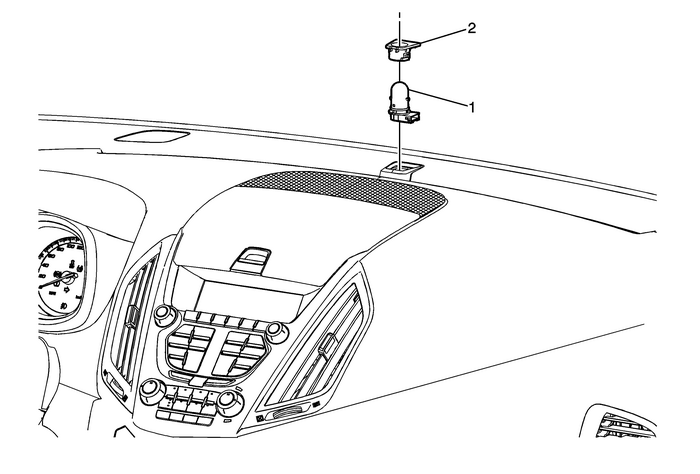

Callout

Component Name

Sun Load Temperature and Headlamp Automatic Control AmbientLight Sensor

Procedure

Remove the sun load temperature and headlamp automaticcontrol ambient light sensor and the instrument panel accessorytrim plate as one assembly.

Instrument Panel Accessory Trim Plate

ProceduresUse a flat bladed plastic trim tool in order to release theinstrument panel accessory trim plate from the instrument panelassembly.Disconnect the electrical connections to the sensor.Turn the sensor within the instrument panel accessory trimplate and remove it from the instrument panel accessory trimplate.
