Inside Rearview Mirror Mount Plate Cover Replacement Trim Panels/Welts

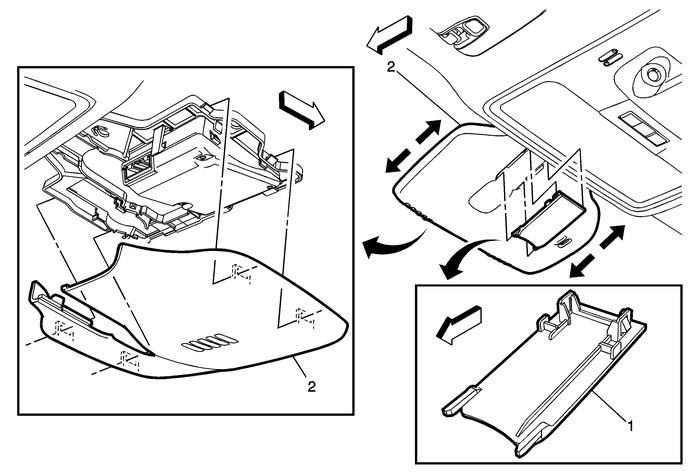

Inside Rearview Mirror Mount Plate Cover Replacement

Callout

Component Name

1

Inside Rearview Mirror Mount Plate Insert

ProcedureAdjust the mirror to the full downward position.Using a suitable plastic tool, insert the tool between the edge of the insert andthe headliner, turn the tool until the insert releases.

2

Inside Rearview Mirror Mount Plate Cover

ProcedureGrasp both sides of the inside rearview mirror mount plate cover.Pull cover downward, releasing the cover tabs from the windshield retainer.
