Instrument Panel Center Air Outlet Replacement (Terrain) Dashboard Assembly

Instrument Panel Center Air Outlet Replacement

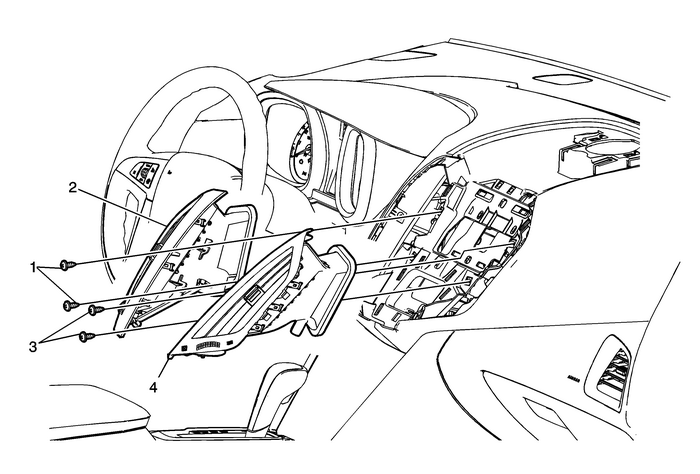

Callout

Component Name

Preliminary Procedure

Remove the Radio Control Assembly. Refer toRadio Control Assembly Replacement.

1

Left Instrument Panel Center Air Outlet Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Left Instrument Panel Center Air Outlet

Procedure

Slide a flat bladed plastic trim tool along the outward edgeof the outlet assembly releasing the retainer tabs securing theoutlet to the instrument panel assembly.

3

Right Instrument Panel Center Air Outlet Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

4

Right Instrument Panel Center Air Outlet

Procedure

Slide a flat bladed plastic trim tool along the outward edgeof the outlet assembly releasing the retainer tabs securing theoutlet to the instrument panel assembly.
