Instrument Panel Center Compartment Bracket Replacement (Terrain) Consoles Center Console

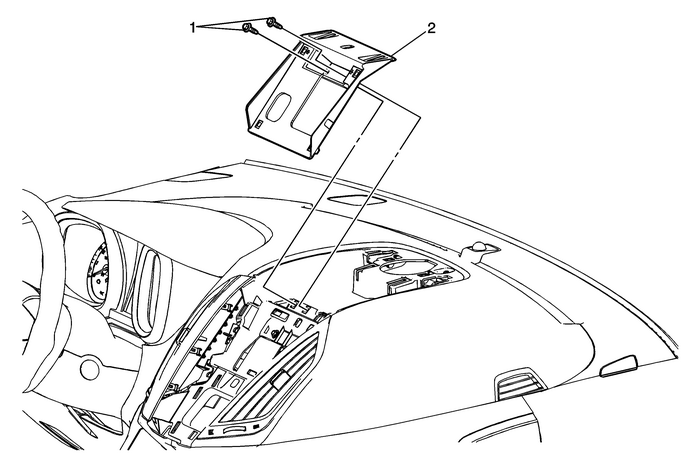

Instrument Panel Center Compartment Bracket Replacement

Callout

Component Name

Preliminary ProceduresRemove the instrument panel upper center trim panel. Refer toInstrument Panel Upper Center Trim Panel Replacement.Remove the radio control assembly. Refer toRadio Control Assembly Replacement.Remove the radio, video, audio disc player, and navigationalinformation display. Refer toRadio, Video, and Audio Player and Navigation Information Display Replacement.

1

Instrument Panel Center Compartment Bracket Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Instrument Panel Center Compartment Bracket
