Input and Output Speed Sensor Removal Automatic Transmission Unit

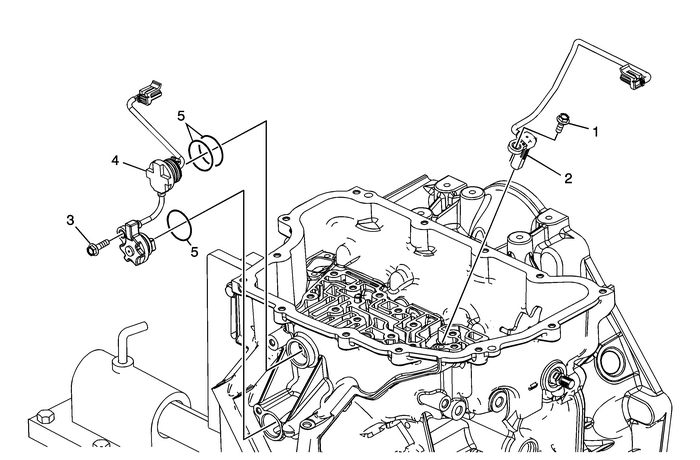

Input and Output Speed Sensor Removal

Callout

Component Name

1

A/Trans Output Speed Sensor Bolt-M6-x-18-(Qty:-1)

2

A/Trans Output Speed Sensor Assembly

3

Input Speed Sensor Bolt M6-x-23-(Qty:-1)

4

Input Speed Sensor Assembly

Note:Compress the locking tabs on the plug to release it from the case and to avoid damagingthe retainers.

5

Input Speed Sensor Assembly Seals-(Qty:-3)

Note:Discard the seals. They are not reusable.
