Input, Reaction, and Output Carrier Assemble (Gen 2) Automatic Transmission Unit

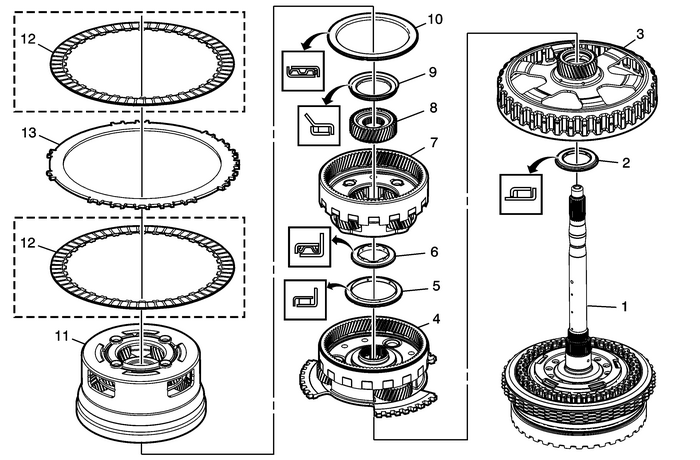

Input, Reaction, and Output Carrier Assemble

Callout

Component Name

1

3–5 Reverse and 4–5–6 Clutch Housing Assembly

2

Reaction Carrier Sun Gear Thrust Bearing

3

Reaction Carrier Sun Gear Assembly

4

Reaction Carrier Assembly

Note:Starting in 2012, all 6T30/40/45/50 models have 3-pinion reaction carriers. The 3-pinionreaction carriers are back serviceable for all models.

Original Configuration:The 6T30 and 6T40 had 3-pinions.The 6T45 and 6T50 had 4-pinions.

5

Input Carrier Thrust Bearing Assembly

6

Input Sun Gear Thrust Bearing Assembly

7

Input Carrier Assembly

Note:

The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions.

8

Input Sun Gear

9

Input Sun Gear Thrust Bearing Assembly

10

Output Carrier Thrust Bearing Assembly

11

Output Carrier Assembly

Note:

The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions.

12

2–6 Clutch Plate Assembly-(Qty:-2)---Model Dependent

Note:

Begin with the clutch plate assembly and alternate with the clutch plate.The number of grooves in the clutch plate friction material varies depending on model.

13

2–6 Clutch Plate-(Qty:-1)

Note:Only install one 2–6-Clutch Plate at this time. The remaining clutch plate is installedinto the case.
