Input, Reaction, and Output Carrier Disassemble Automatic Transmission Unit

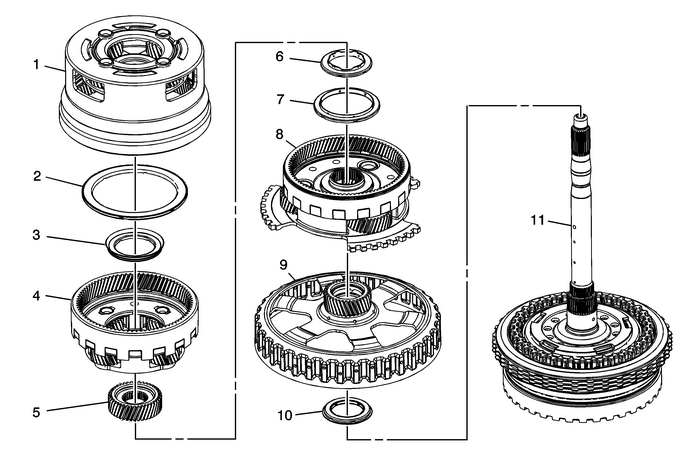

Input, Reaction, and Output Carrier Disassemble

Callout

Component Name

1

Output Carrier Assembly

Note:

The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions.

2

Output Carrier Thrust Bearing Assembly

3

Input Sun Gear Thrust Bearing Assembly

4

Input Carrier Assembly

Note:

The 6T30 and 6T40 have 4-pinions.The 6T45 and 6T50 have 5-pinions.

5

Input Sun Gear

6

Input Sun Gear Thrust Bearing Assembly

7

Input Carrier Thrust Bearing Assembly

8

Reaction Carrier Assembly

Note:Starting in 2012, all 6T30/40/45/50 models have 3-pinion reaction carriers. The 3-pinionreaction carriers are back serviceable for all models.

Original Configuration:The 6T30 and 6T40 had 3-pinions.The 6T45 and 6T50 had 4-pinions.

9

Reaction Carrier Sun Gear Assembly

10

Reaction Carrier Sun Gear Thrust Bearing

Note:The sun gear thrust bearing may be stuck to the sun gear.

11

3–5 Reverse and 4–5–6 Clutch Housing Assembly

Input, Reaction, and Output Carrier Assemble (Gen 2) Automatic Transmission Unit
Input, Reaction, and Output Carrier AssembleCalloutComponent Name13–5 Reverse and 4–5–6 Clutch Housing Assembly2Reaction Carrier Sun Gear Thrust Bearing3Reaction Carrier Sun Gear Assembly4Reacti ...

Input, Reaction, and Output Carrier Installation Automatic Transmission Unit
Input, Reaction, and Output Carrier InstallationCalloutComponent NamePreliminary ProcedureNote location of the orientation lip on bearings. All thrustbearings can only be assembled one way.1Input Shaf ...
