Input and Output Speed Sensor Installation Automatic Transmission Unit

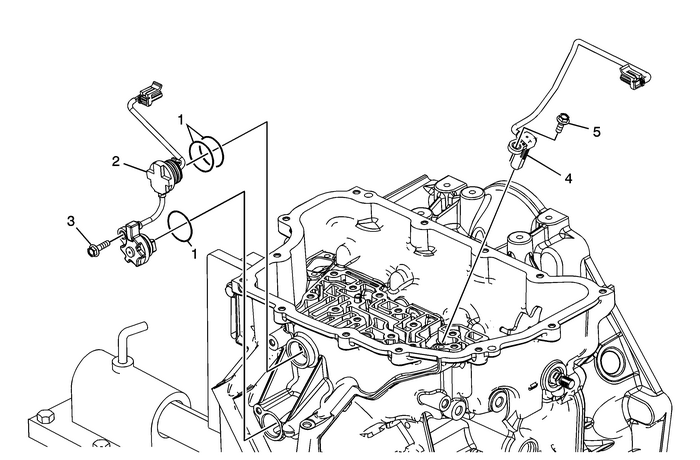

Input and Output Speed Sensor Installation

Callout

Component Name

1

Input Speed Sensor Assembly Seals

2

Input Speed Sensor Assembly

3

Input Speed SensorBolt-M6-x-23-(Qty:-1)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

4

A/Trans Output Speed Sensor Assembly

5

A/Trans Output Speed SensorBolt-M6-x-18-(Qty:-1)

Tighten

9-Y(80-lb-in)

Special Tools Automatic Transmission Unit
IllustrationTool Number/DescriptionDT-48074Input and Output Shaft Seal InstallerDT-48075Output Shaft Seal InstallerDT-48077Output Shaft Slinger InstallerDT-48078Inner Drive Shaft Seal InstallerDT-4809 ...
