Chevrolet Equinox Service Manual: Special Tools Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Special Tools Automatic Transmission Unit

Illustration

Tool Number/Description

Special Tools Automatic Transmission Unit

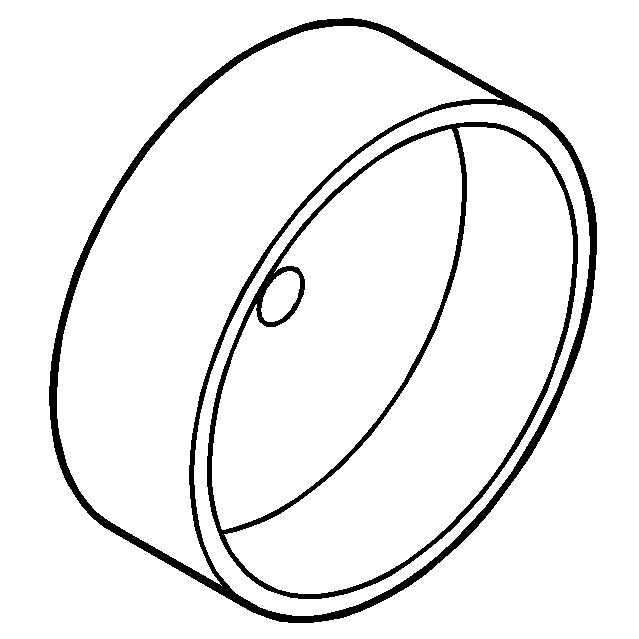

DT-48074

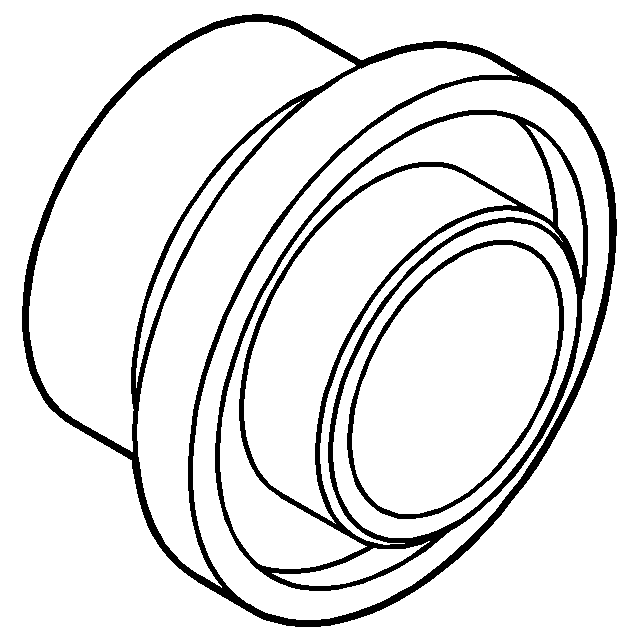

Input and Output Shaft Seal Installer

Special Tools Automatic Transmission Unit

DT-48075

Output Shaft Seal Installer

Special Tools Automatic Transmission Unit

DT-48077

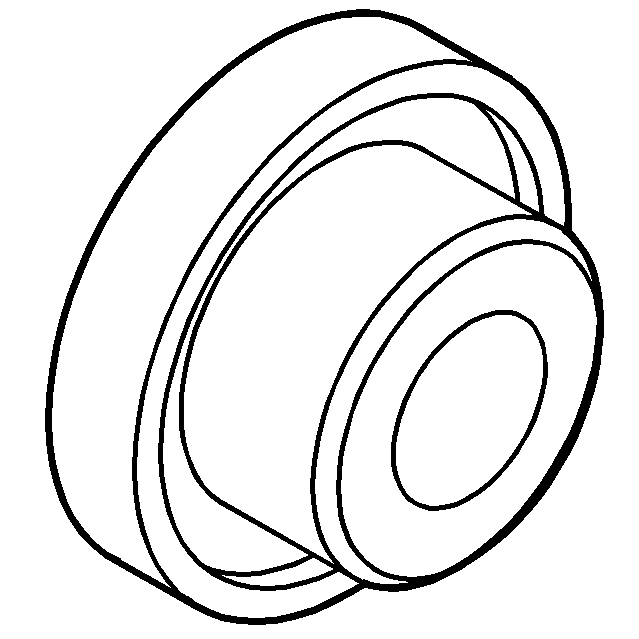

Output Shaft Slinger Installer

Special Tools Automatic Transmission Unit

DT-48078

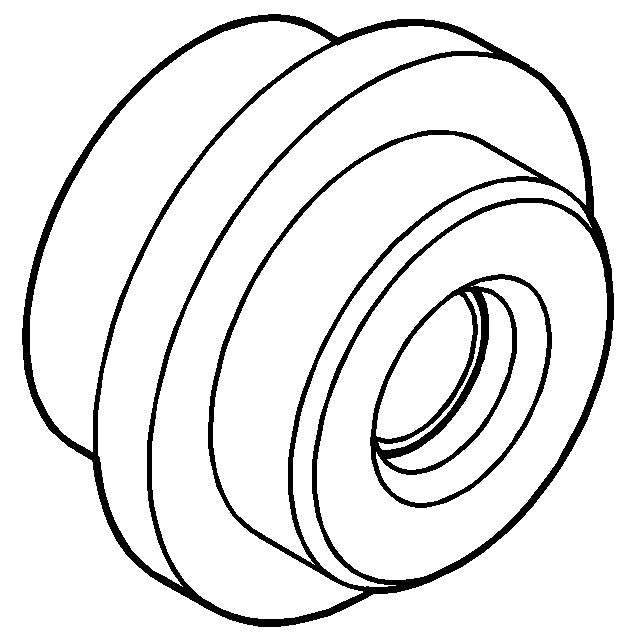

Inner Drive Shaft Seal Installer

Special Tools Automatic Transmission Unit

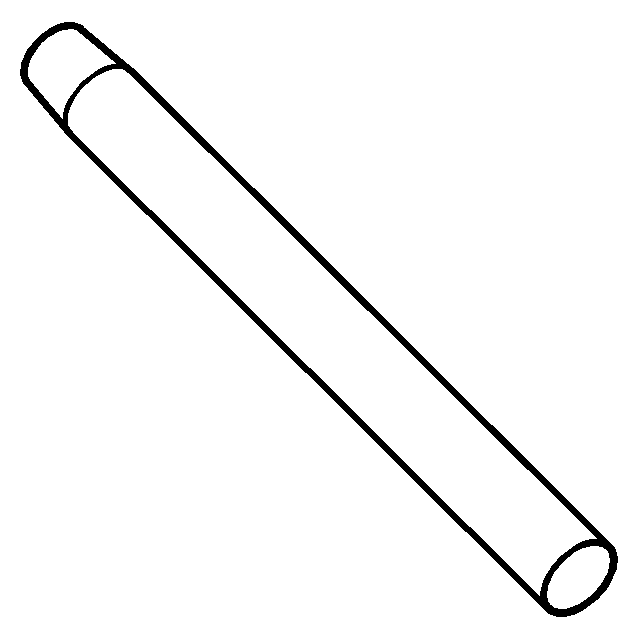

DT-48094

Installation Guide Shaft

Special Tools Automatic Transmission Unit

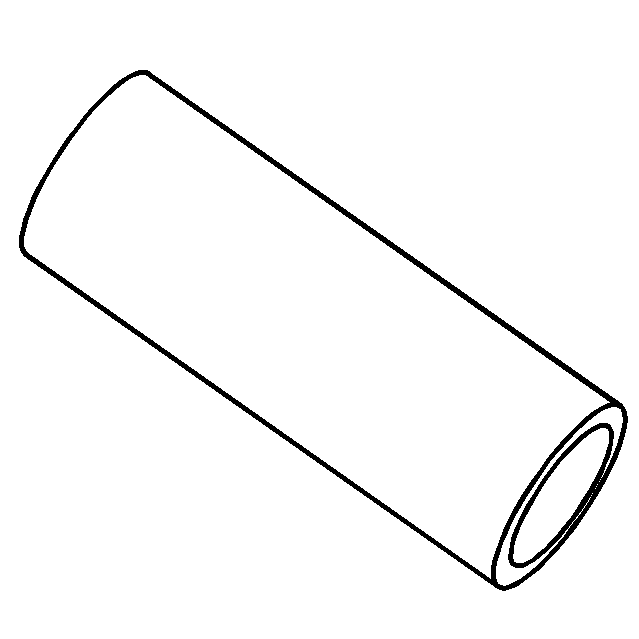

DT-48146

6-9694356

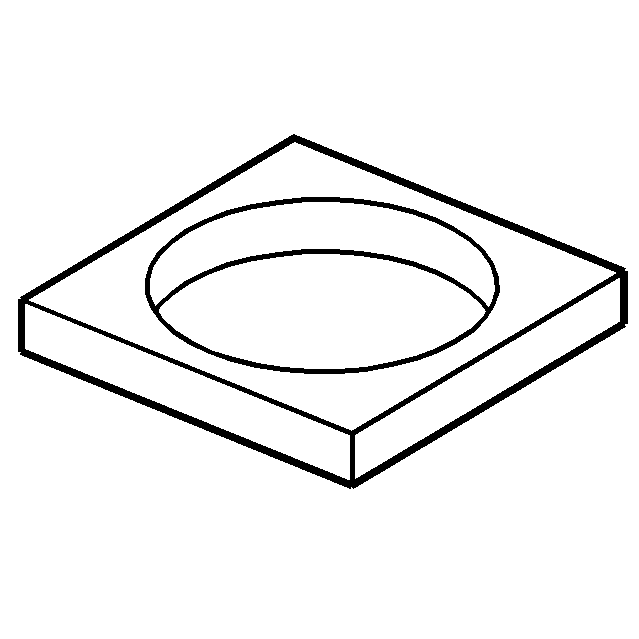

Press Support

Special Tools Automatic Transmission Unit

J-5590

EN-24254-A

Pinion Bearing Race Installer – Rear

Special Tools Automatic Transmission Unit

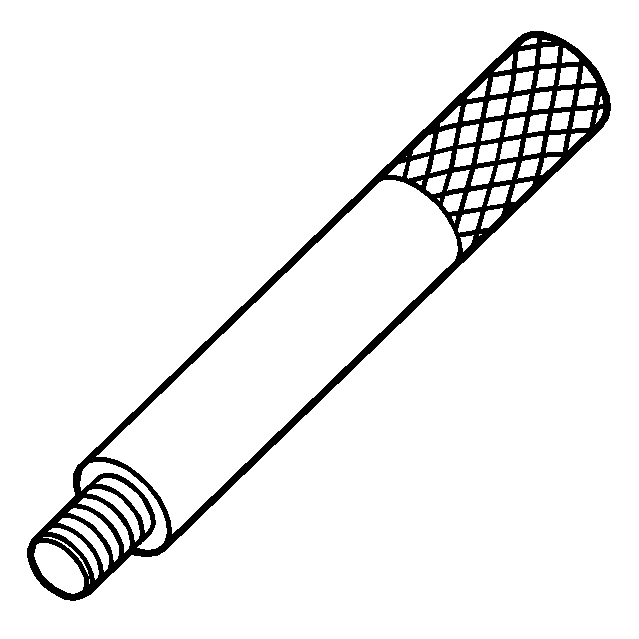

GE-8092

6-9606332

M-840911-A

J-8092

Driver Handle

Special Tools Automatic Transmission Unit

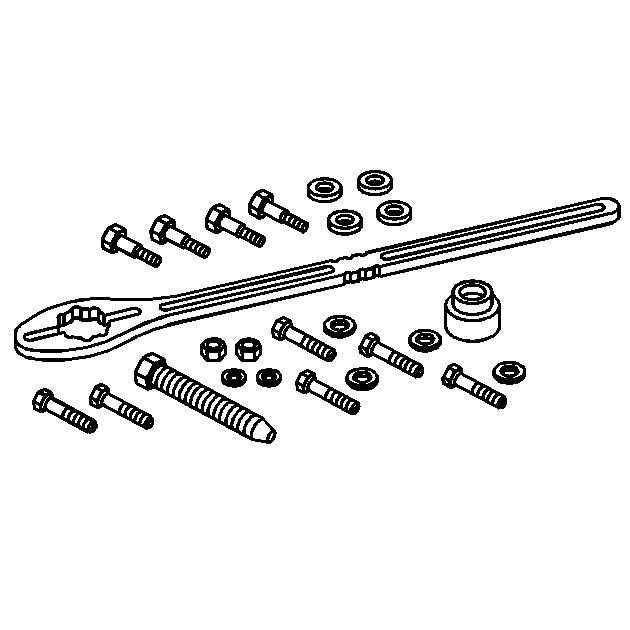

DT-08614-A

M-830710-A

J-08614-A

Pinion Flange Holder and Remover

Special Tools Automatic Transmission Unit

DT-22912-B

J-22912-B

6-9694357

KM-307-B

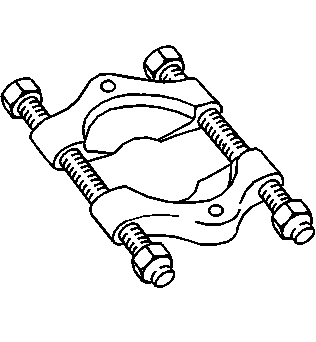

Rear Pinion and Axle Bearing Remover

Special Tools Automatic Transmission Unit

EL-25070

South America Use Local Equivalent

J-25070

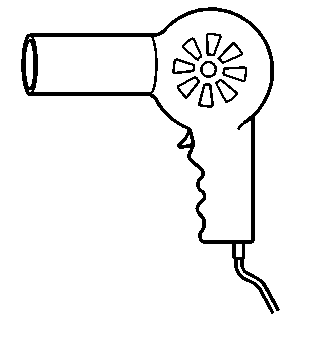

Heat Gun – 500–750F

Special Tools Automatic Transmission Unit

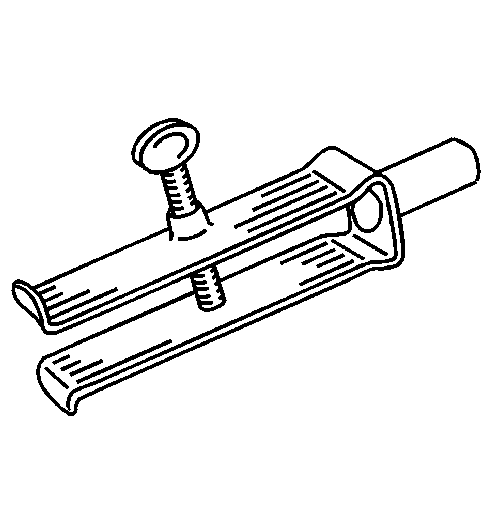

DT-26941

J-26941

KM-J-26941

Bushing and Bearing Remover – 3–4-in

Special Tools Automatic Transmission Unit

GE-28431-6

J-28431-6

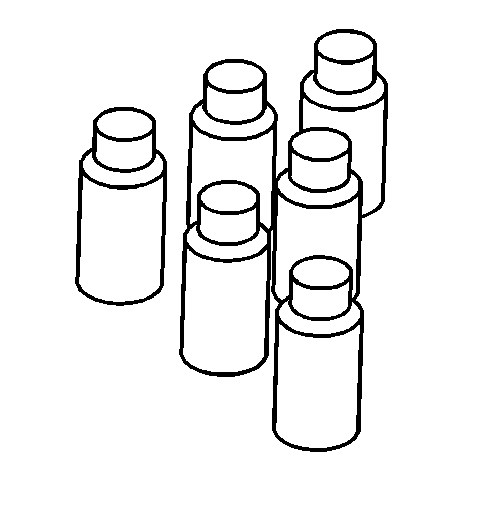

Fluorescent Oil Dye

Special Tools Automatic Transmission Unit

GE-28428-E

South America Use Local Equivalent

J-4220

J-28428-E

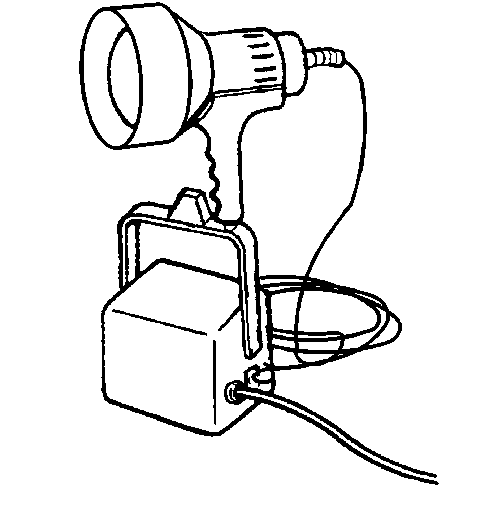

High-Intensity Black Light Kit

Special Tools Automatic Transmission Unit

CH-39570

J-39570

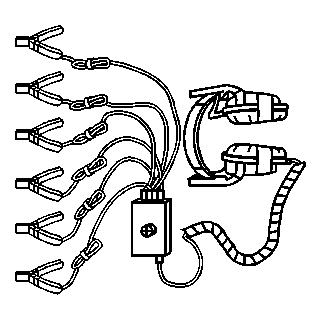

Chassis Ears

Special Tools Automatic Transmission Unit

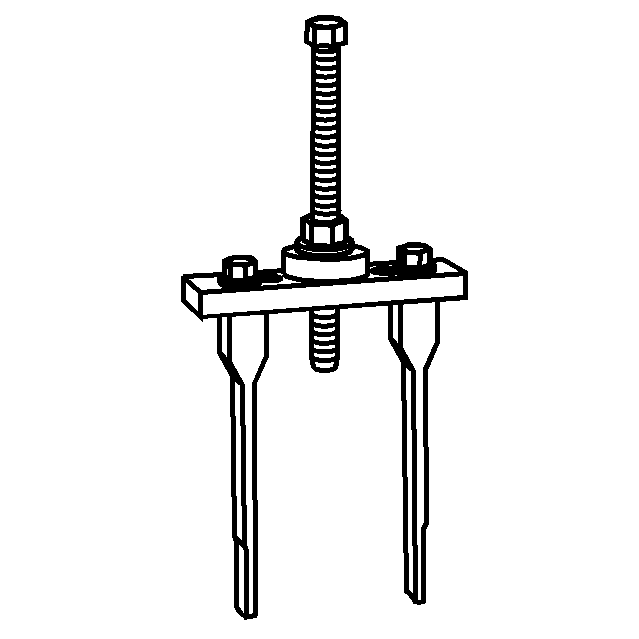

DT-45124

J-45124

Removal Bridge

Special Tools Automatic Transmission Unit
IllustrationTool Number/DescriptionDT-3289-20J-3289-20KM-113–2–AHolding FixtureDT-8092GE-8092J-8092KM-J-8092DW340–0106-9606332 or M-840911-ADriver HandleDT-21366J-21366DT-50396DT-6388KM-6388Conv ...

Input and Output Speed Sensor Installation Automatic Transmission Unit
Input and Output Speed Sensor InstallationCalloutComponent Name1Input Speed Sensor Assembly Seals2Input Speed Sensor Assembly3Input Speed SensorBolt-M6-x-23-(Qty:-1)Caution:Refer toFastener Caution.Ti ...
