Chevrolet Equinox Service Manual: Special Tools Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Special Tools Automatic Transmission Unit

Illustration

Tool Number/Description

Special Tools Automatic Transmission Unit

DT-3289-20

J-3289-20

KM-113–2–A

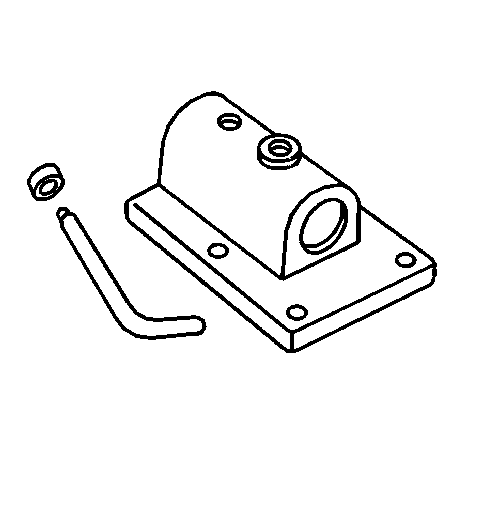

Holding Fixture

Special Tools Automatic Transmission Unit

DT-8092

GE-8092

J-8092

KM-J-8092

DW340–010

6-9606332 or M-840911-A

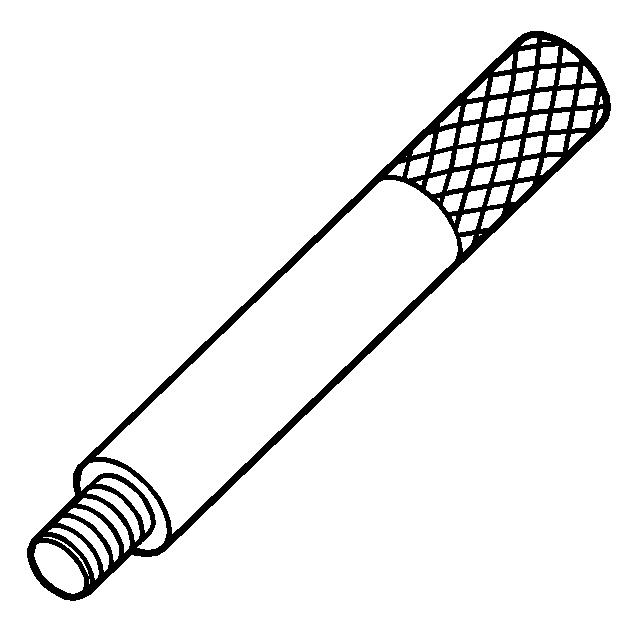

Driver Handle

Special Tools Automatic Transmission Unit

DT-21366

J-21366

DT-50396

DT-6388

KM-6388

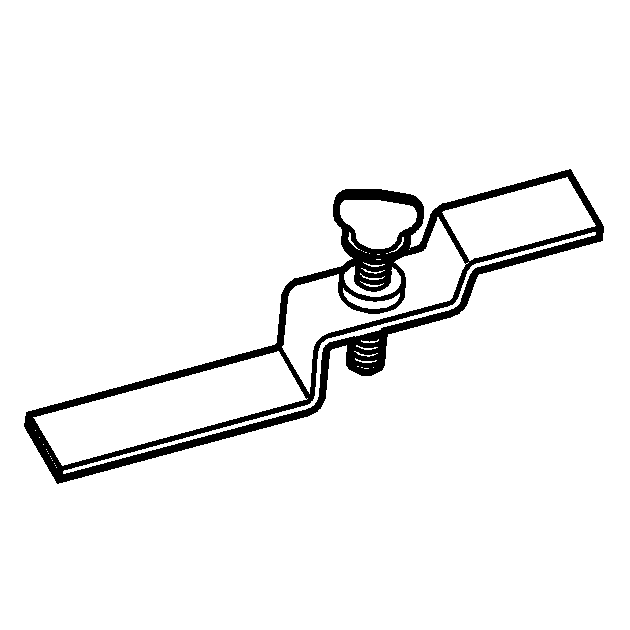

Converter Holding Strap

Special Tools Automatic Transmission Unit

DT-23129

J-23129

DT-586

KM-586

T-0207928

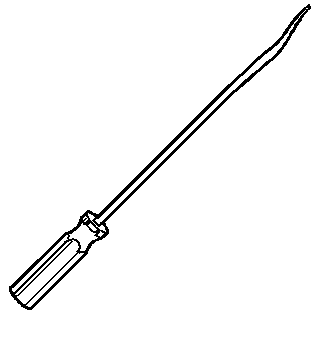

Universal Seal Remover

Special Tools Automatic Transmission Unit

DT-28585

J-28585

KM-J-28585

Snap Ring Remover

Special Tools Automatic Transmission Unit

DT-39890

J-39890

KM-113–2–A

Transmission Holding Fixture Adapter

Special Tools Automatic Transmission Unit

DT-41229

J-41229

Manual Shaft Pin Installer

Special Tools Automatic Transmission Unit

DT-45096

J-45096

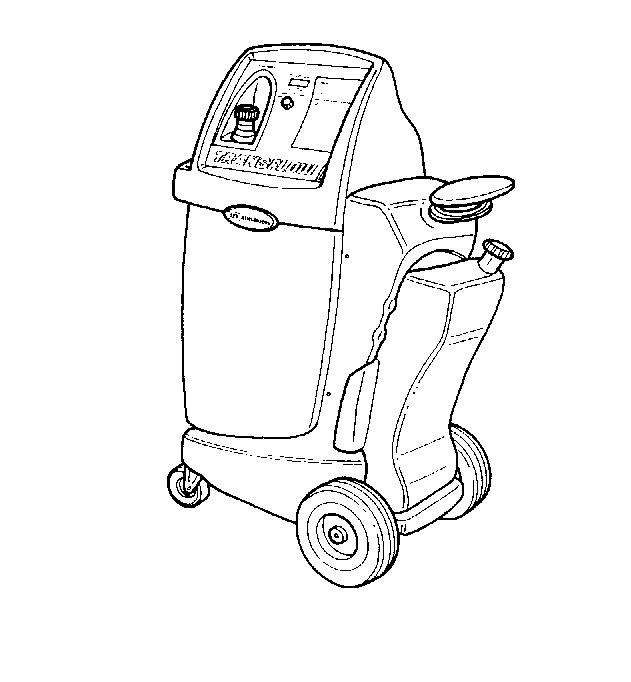

Transmission Oil Cooling System Flush and Flow Test Tool

Special Tools Automatic Transmission Unit

DT-45096-50

J-45096-50

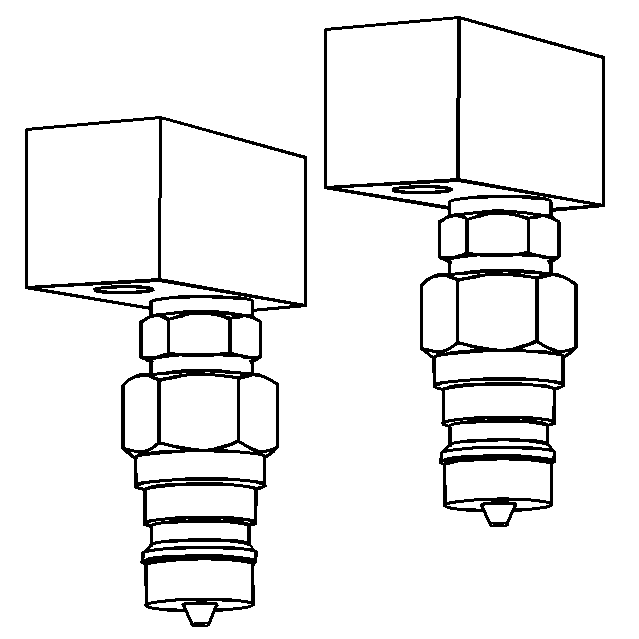

Transmission Cooling Flush Adapter

Special Tools Automatic Transmission Unit

DT-45201

DT-48203

J-45201

Cooler Line Seal Remover

Special Tools Automatic Transmission Unit

DT-46409

J-46409

KM-922

Torque Converter Lifting Handles

Special Tools Automatic Transmission Unit

DT-46620

J-46620

Seal Installer

Special Tools Automatic Transmission Unit

DT-46625

J-46625

Holding Fixture

Special Tools Automatic Transmission Unit

DT-46625-10

J-46625-10

Holding Fixture Adapter

Special Tools Automatic Transmission Unit

DT-46626

J-46626

Seal Installer

Special Tools Automatic Transmission Unit

DT-47694

Spring Compressor

Special Tools Automatic Transmission Unit

DT-47790

Seal Installer

Special Tools Automatic Transmission Unit

DT-47791-A

Seal Installer

Special Tools Automatic Transmission Unit

DT-47792

Seal Installer

Special Tools Automatic Transmission Unit

DT-47793

Differential Rotating Tool

Special Tools Automatic Transmission Unit

DT-47794

Spring Compressor

Special Tools Automatic Transmission Unit

DT-47796

Seal Protector

Special Tools Automatic Transmission Unit

DT-47797

Spring Installer

Special Tools Automatic Transmission Unit

DT-47798

Seal Protector

Special Tools Automatic Transmission Unit

DT-47799

Clutch Piston Spring Compressor

Special Tools Automatic Transmission Unit

DT-47805

Seal Protector

Special Tools Automatic Transmission Unit

DT-47807

Clutch Piston Seal Installer

Special Tools Automatic Transmission Unit

DT-47811-A

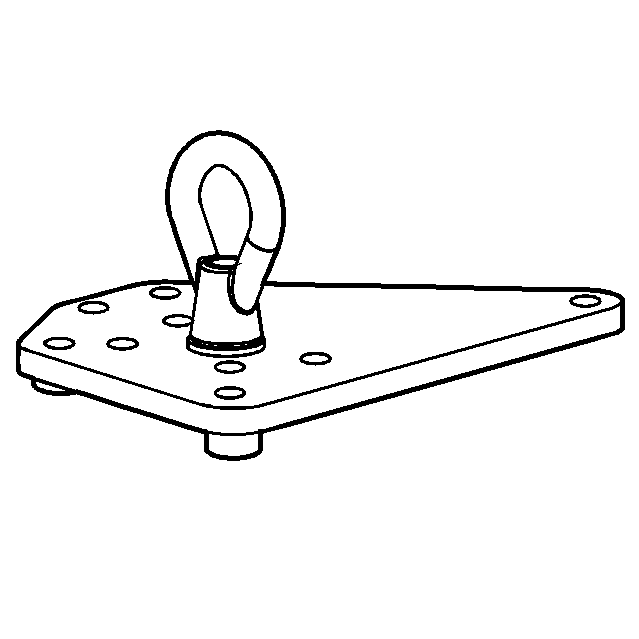

Lift Plate

Special Tools Automatic Transmission Unit

DT-47951-1

Seal Protector

Special Tools Automatic Transmission Unit

DT-47951-2

Spring Compressor

Special Tools Automatic Transmission Unit

DT-48056

Spring Compressor Bridge

Special Tools Automatic Transmission Unit

DT-48550

Detent Lever Pin Remover

Special Tools Automatic Transmission Unit

DT-48616

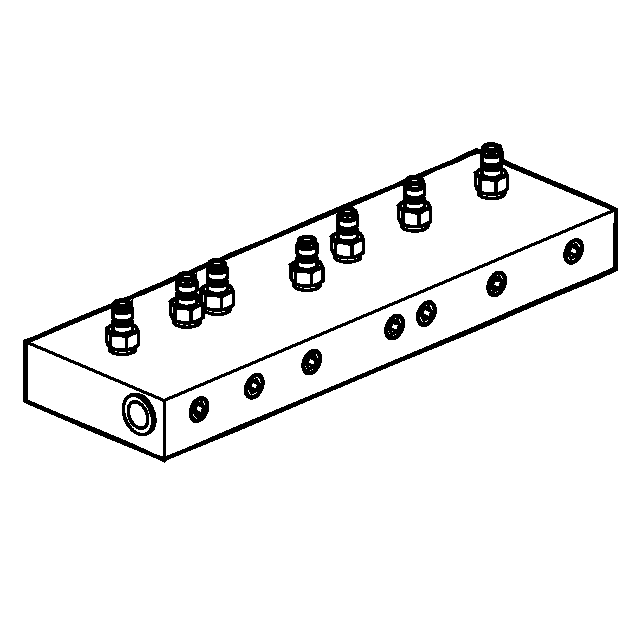

Control Solenoid Test Plate

Special Tools Automatic Transmission Unit

DT-48616-10

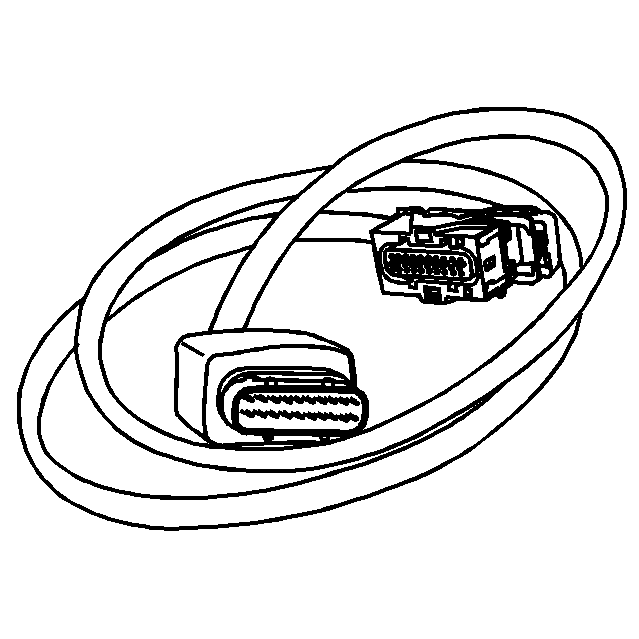

Adapter Harness

Special Tools Automatic Transmission Unit

DT-49101

Seal Installer

Special Tools Automatic Transmission Unit

DT-49131

Seal Staking Tool

Special Tools Automatic Transmission Unit

DT-49831

Differential Bearing Remover/Installer (2 Pinion Blue)

Special Tools Automatic Transmission Unit

DT-50087

Differential Bearing Remover/Installer (4 Pinion Red)

Special Tools Automatic Transmission Unit

DT-50117

Seal Protector

Special Tools Automatic Transmission Unit

DT-50117-1

Seal Protector

Special Tools Automatic Transmission Unit

DT-50117-2

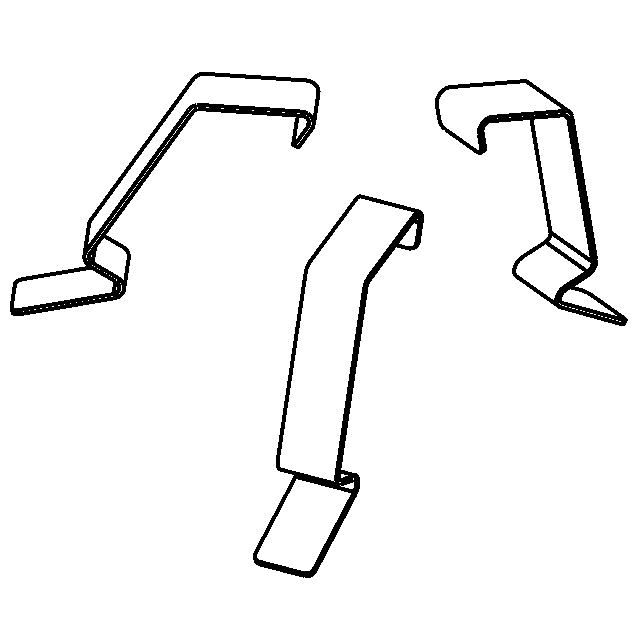

Seal Protector Retaining Clips

Special Tools Automatic Transmission Unit

DT-50573

Retaining Ring Installer

Special Tools Automatic Transmission Unit

EL-38522

J-38522

South America Use Local Equivalent

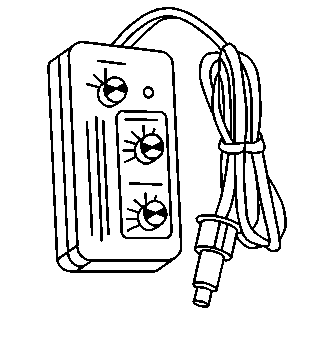

Variable Signal Generator

Special Tools Automatic Transmission Unit

EN-45059

J-45059

South America Use Local Equivalent

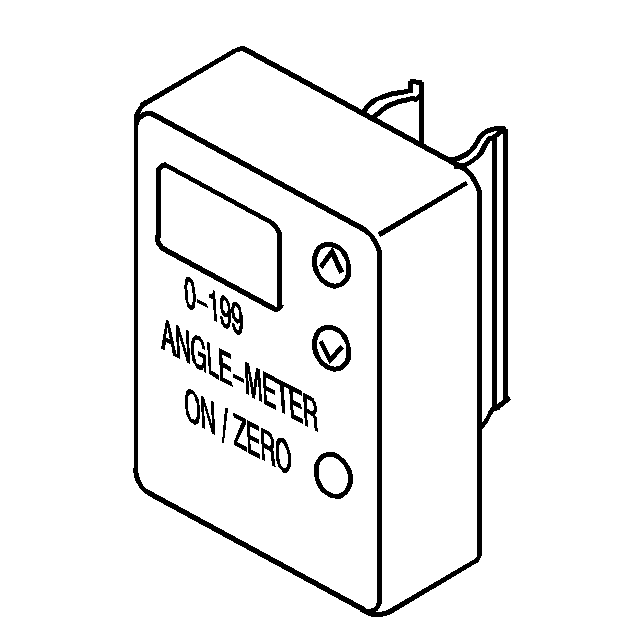

Angle Meter

Special Tools Automatic Transmission Unit

GE-5586-A

J-5586-A

KM-396

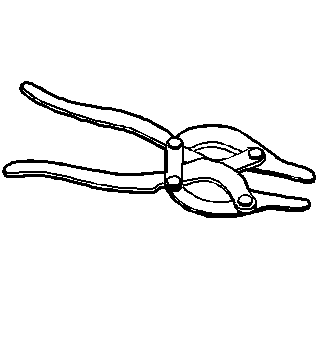

Snap Ring Pliers

Special Tools Automatic Transmission Unit

GE-6125-1B

J-6125-1B

M-680770

KM-J-7004

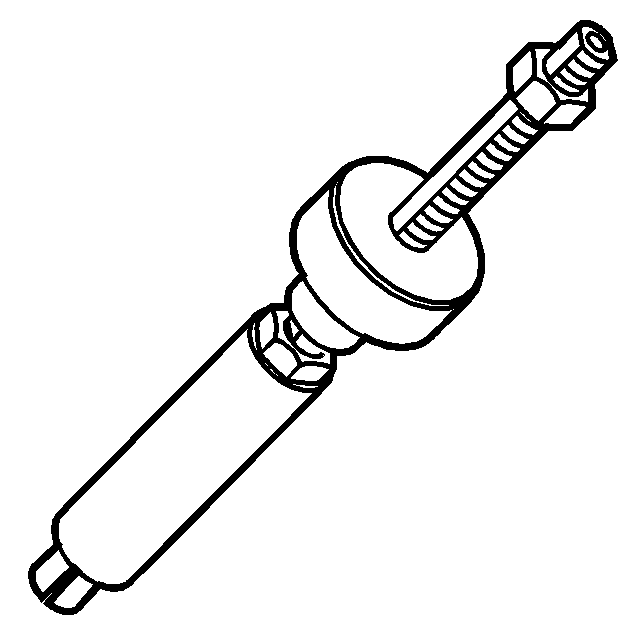

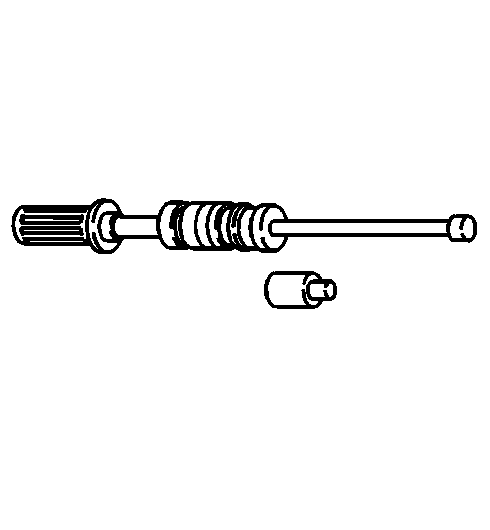

Slide Hammer

Special Tools Automatic Transmission Unit

GE-8059

DT-8059

J-8059

DT-396

GE-396

KM-396

Snap Ring Pliers-Parallel Jaw

Special Tools Automatic Transmission Unit

GE-21867-A

J-21867-A

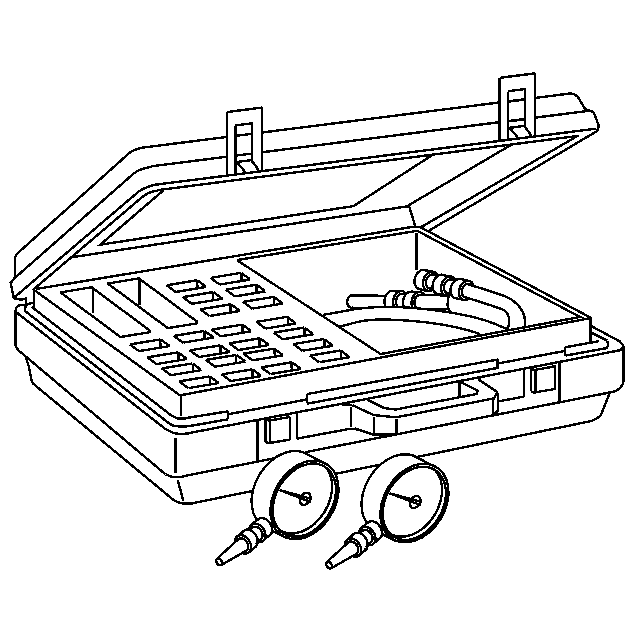

Oil Pressure Gauge Kit

Special Tools Automatic Transmission Unit

GE-34673

J-34673

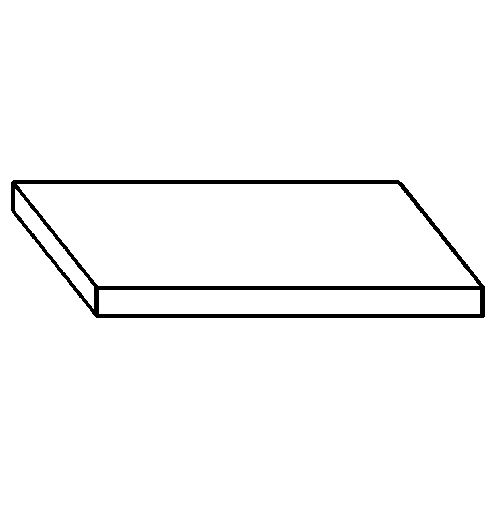

Flat Gauge Bar

Special Tools Automatic Transmission Unit
IllustrationTool Number/DescriptionDT-3289-20J-3289-20KM-113-2-AHolding FixtureDT-8433-1J-8433-1Puller BarDT-21366J-21366Converter Holding StrapDT-21867-AJ-21867-APressure GaugeDT-22912-BJ-22912-BSpli ...

Special Tools Automatic Transmission Unit
IllustrationTool Number/DescriptionDT-48074Input and Output Shaft Seal InstallerDT-48075Output Shaft Seal InstallerDT-48077Output Shaft Slinger InstallerDT-48078Inner Drive Shaft Seal InstallerDT-4809 ...
