Chevrolet Equinox Service Manual: Special Tools Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Special Tools Automatic Transmission Unit

Illustration

Tool Number/Description

Special Tools Automatic Transmission Unit

DT-3289-20

J-3289-20

KM-113-2-A

Holding Fixture

Special Tools Automatic Transmission Unit

DT-8433-1

J-8433-1

Puller Bar

Special Tools Automatic Transmission Unit

DT-21366

J-21366

Converter Holding Strap

Special Tools Automatic Transmission Unit

DT-21867-A

J-21867-A

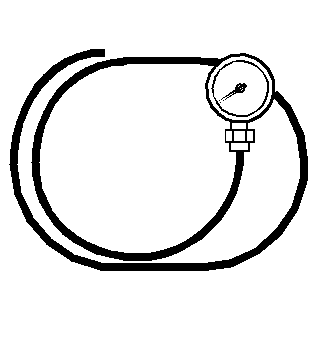

Pressure Gauge

Special Tools Automatic Transmission Unit

DT-22912-B

J-22912-B

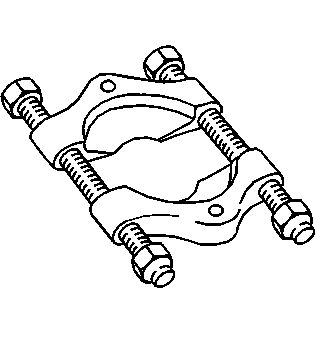

Split Plate Bearing Remover

Special Tools Automatic Transmission Unit

DT-23129

J-23129

KM-586

Universal Seal Remover

Special Tools Automatic Transmission Unit

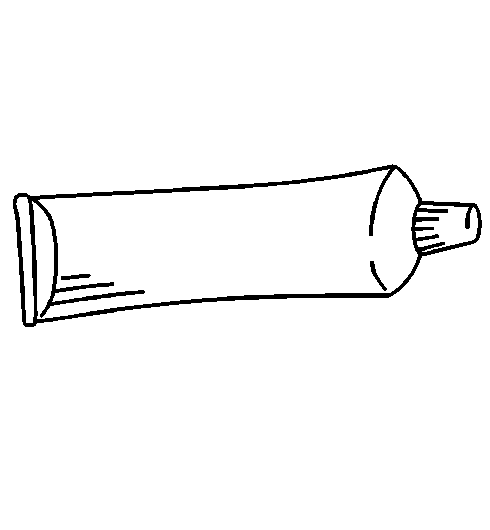

DT-23444-A

J-23444-A

Extreme Press Lubricant-1/4 Ounce Tube

Special Tools Automatic Transmission Unit

DT-28585

J-28585

Snap Ring Remover

Special Tools Automatic Transmission Unit

DT-39068

J-39068

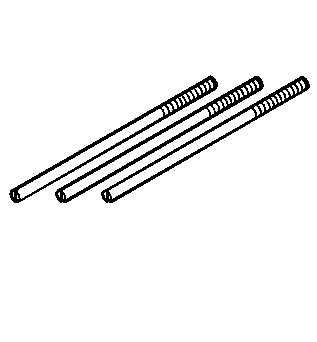

Valve Body Guide Pins-(3)

Special Tools Automatic Transmission Unit

DT-39890

J-39890

Holding Fixture Adapter

Special Tools Automatic Transmission Unit

DT-41229

J-41229

Manual Shaft Pin Installer

Special Tools Automatic Transmission Unit

DT-41816

J-41816

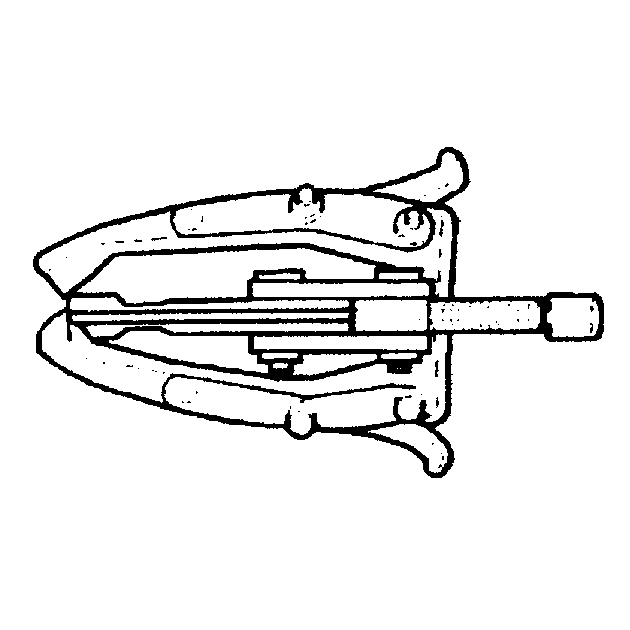

Three Legged Puller

Special Tools Automatic Transmission Unit

DT-41816-2

J-41816-2

Crankshaft End Protector

Special Tools Automatic Transmission Unit

DT-45087

J-45087

Bearing Cup Installer

Special Tools Automatic Transmission Unit

DT-45087-A

Bearing Cup Installer

Special Tools Automatic Transmission Unit

DT-45094

J-45094

Bearing Cup Remover

Special Tools Automatic Transmission Unit

DT-45096

J-45096

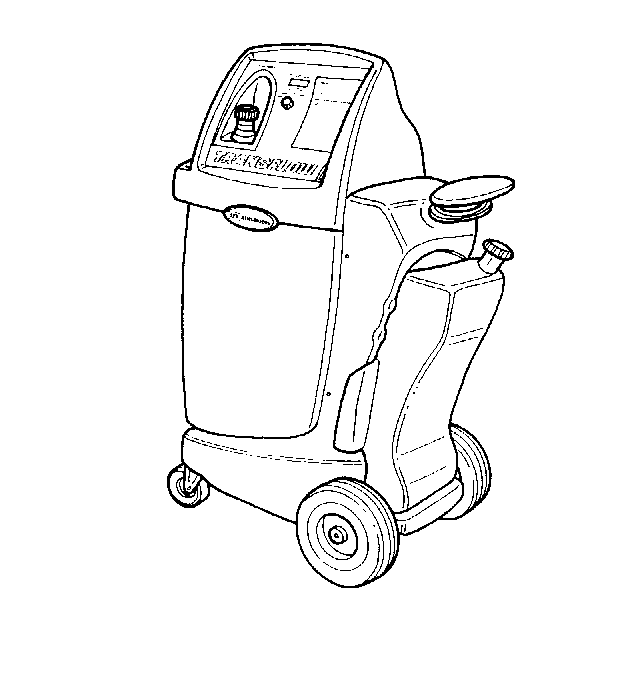

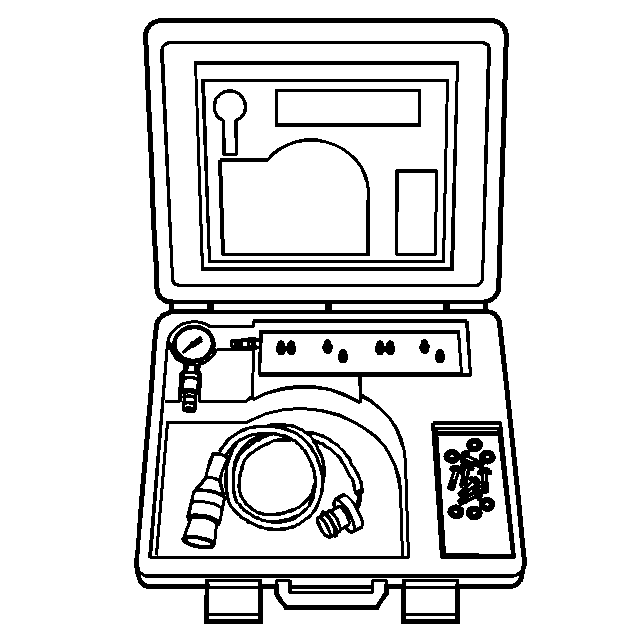

Transmission Oil Cooling System Flush and Flow Test Tool

Special Tools Automatic Transmission Unit

DT-45096-50

J-45096-50

Transmission Cooler Flush Adapter

Special Tools Automatic Transmission Unit

DT-45124

J-45124

Removal Bridge

Special Tools Automatic Transmission Unit

DT-45201

DT-48203

J-45201

Cooler Line Seal Remover

Special Tools Automatic Transmission Unit

DT-45341

J-45341

Rear Wheel Drive Shaft Removal Tool

Special Tools Automatic Transmission Unit

DT-46409

J-46409

KM-922

Torque Converter Lifting Handles

Special Tools Automatic Transmission Unit

DT-46620

J-46620

Seal Installer

Special Tools Automatic Transmission Unit

DT-46621

J-46621

Piston Seal Protector

Special Tools Automatic Transmission Unit

DT-46622

J-46622

Piston Seal Protector

Special Tools Automatic Transmission Unit

DT-46623

J-46623

Piston Seal Protector

Special Tools Automatic Transmission Unit

DT-46624

J-46624

Seal Installer

Special Tools Automatic Transmission Unit

DT-46625

J-46625

Transmission Holding Fixture

Special Tools Automatic Transmission Unit

DT-46626

J-46626

Seal Installer

Special Tools Automatic Transmission Unit

DT-46627-A

J-46627-A

Seal Installer

Special Tools Automatic Transmission Unit

DT-46628-1

J-46628-1

Piston Seal Protector

Special Tools Automatic Transmission Unit

DT-46628-2

J-46628-2

Spring Compressor

Special Tools Automatic Transmission Unit

DT-46629-A

J-46629-A

Seal Installer

Special Tools Automatic Transmission Unit

DT-46630

J-46630

Lube Dam Installer

Special Tools Automatic Transmission Unit

DT-46632

J-46632

Spring Compressor

Special Tools Automatic Transmission Unit

DT-47693

Dam Protector

Special Tools Automatic Transmission Unit

DT-47694

Piston Spring Compressor

Special Tools Automatic Transmission Unit

DT-47734

Speed Sensor Harness Tether

Special Tools Automatic Transmission Unit

DT-47793

Differential Rotating Tool

Special Tools Automatic Transmission Unit

DT-47800

Shim Selection Gauge

Special Tools Automatic Transmission Unit

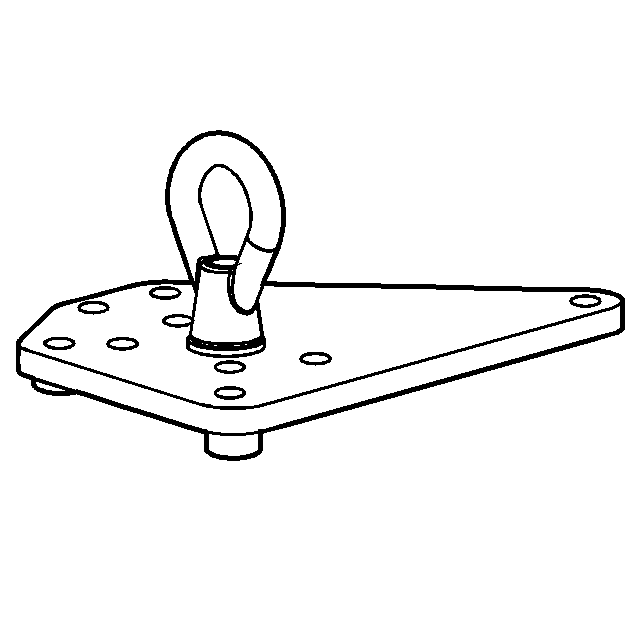

DT-47811-A

Lift Plate

Special Tools Automatic Transmission Unit

DT-47825

Control Solenoid Test Plate

Special Tools Automatic Transmission Unit

DT-47825-20

Adapter Harness

Special Tools Automatic Transmission Unit

DT-47825-100

Solenoid Test Plate

Special Tools Automatic Transmission Unit

DT-47859

Piston Outer Seal Protector

Special Tools Automatic Transmission Unit

DT-47927

Bearing Cup Remover

Special Tools Automatic Transmission Unit

DT-47928

Bearing Installer

Special Tools Automatic Transmission Unit

DT-48055

Lube Dam Remover

Special Tools Automatic Transmission Unit

DT-48056

Spring Compressor Bridge

Special Tools Automatic Transmission Unit

DT-48551

Reaction Hub Bushing Protector

Special Tools Automatic Transmission Unit

DT-49131

Seal Staking Tool

Special Tools Automatic Transmission Unit

DT-49861

Seal Installer

Special Tools Automatic Transmission Unit

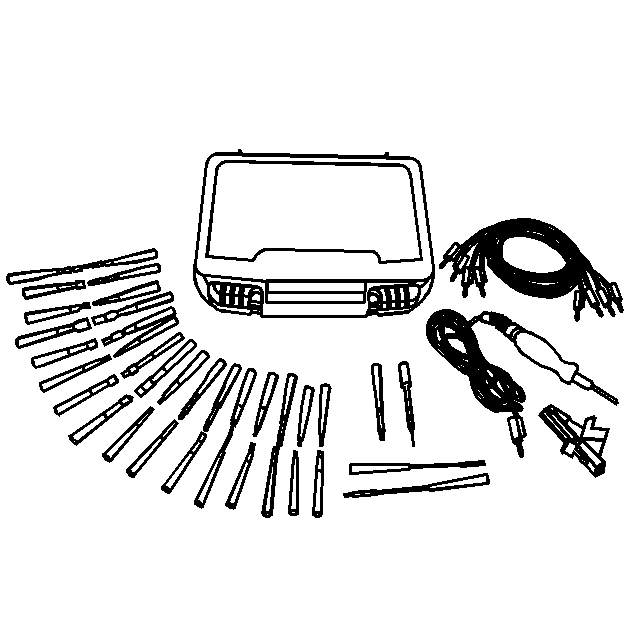

EL-35616

J-35616

GM-Approved Terminal Test Kit

Special Tools Automatic Transmission Unit

EL-38522

J-38522

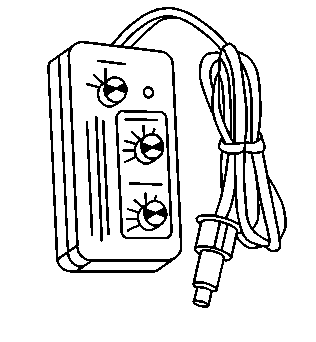

Variable Signal Generator

Special Tools Automatic Transmission Unit

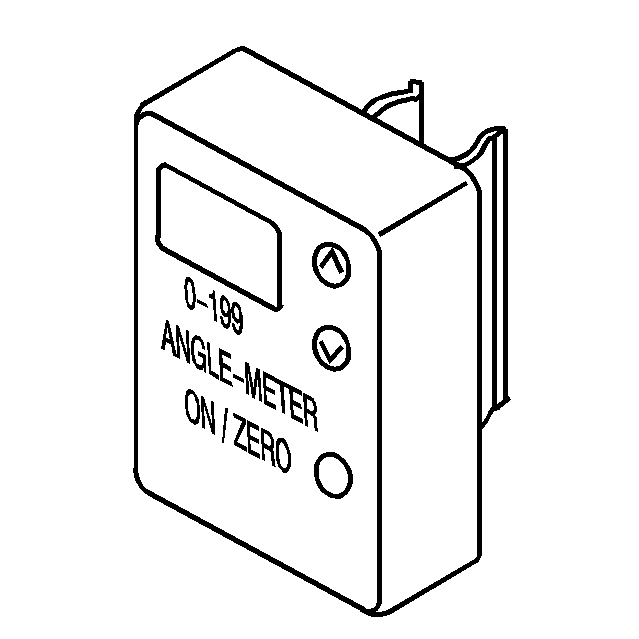

EN-45059

J-45059

Angle Meter

Special Tools Automatic Transmission Unit

GE-6125-1B

J-6125-1B

J-6125-B

KM-J-7004

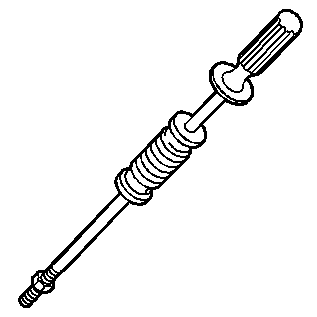

Slide Hammer with Adapter

Special Tools Automatic Transmission Unit

GE-8059

J-8059

KM-396

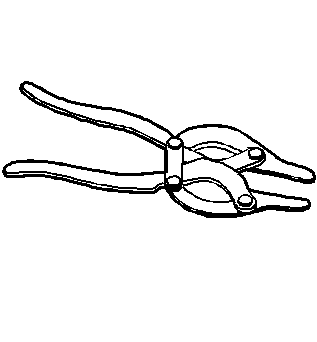

Snap Ring Plier-Parallel Jaw

Special Tools Automatic Transmission Unit

GE-8092

J-8092

KM-J-8092

Driver Handle
