Hood Primary Latch Release Cable Handle Replacement Panels

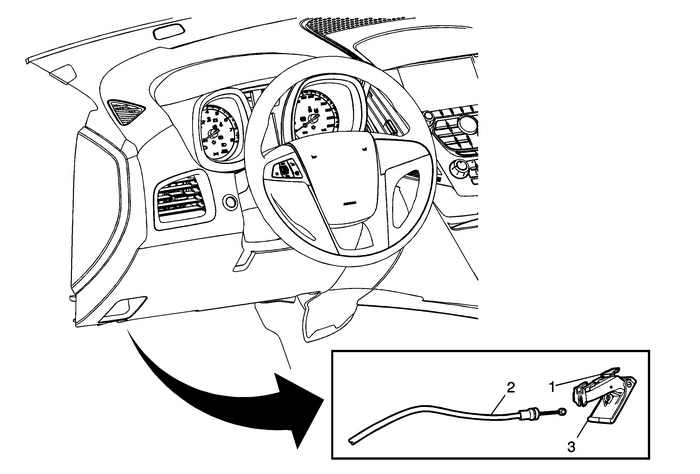

Hood Primary Latch Release Cable Handle Replacement

Callout

Component Name

1

Hood Primary Latch Release Cable Handle Retainer

Procedure

Press the release cable handle inward/downward to release theretainers from the instrument panel.

2

Hood Primary Latch Release Cable

Procedure

Disconnect the hood release cable from the hood releasehandle.

3

Hood Primary Latch Release Cable Handle
