Chevrolet Equinox Owners Manual: Dome Lamps

Dome Lamps

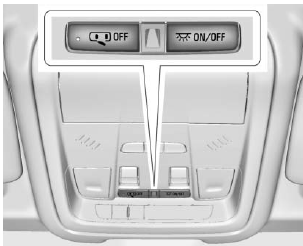

The dome lamp controls are in the overhead console.

To operate, press the following buttons: OFF : Press to turn off the dome lamps when a door is open.

An indicator light on the button will turn on when the dome lamp override is activated. Press OFF again to deactivate this feature and the indicator light will turn off.

The dome lamps will come on when doors are opened.

ON/OFF : Press to turn the dome lamps on manually.

Courtesy Lamps
The courtesy lamps come on when any door is opened and the OFF indicator light is turned off. See Dome Lamps. ...

Reading Lamps
There are reading lamps on the overhead console and over the rear passenger doors. These lamps come on when any door is opened. Front Reading Lamps The front reading lamps are in the overhea ...
