Hood Primary Latch Release Cable Replacement Panels

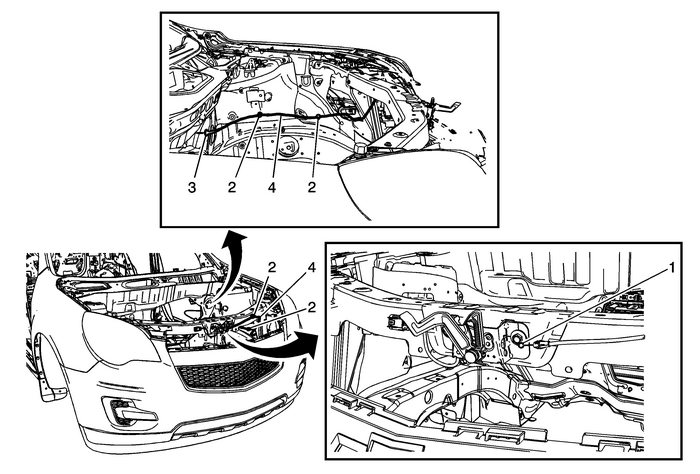

Hood Primary Latch Release Cable Replacement

Callout

Component Name

Preliminary ProceduresRemove the driver side front bumper opening cover. Refer toFront Bumper Fascia Opening Cover Replacement.Remove the battery tray. Refer toBattery Tray Replacement.

1

Hood Primary Latch Cable

Procedure

Disconnect the hood primary latch release cable from theprimary hood latch.

2

Hood Primary Latch Release Cable Retainer

Procedure

Disconnect the hood release cable retainers from the hoodrelease cable.

3

Hood Primary Latch Release Cable Grommet

4

Hood Primary Latch Release Cable

ProcedureDisconnect the hood primary latch release cable handle fromthe hood latch cable. Refer toHood Primary Latch Release Cable Handle Replacement.Attach mechanics wire to the cable and pull the cable out.Attach mechanics wire the new cable and guide in.
