Hood Primary and Secondary Latch Replacement (Terrain) Panels

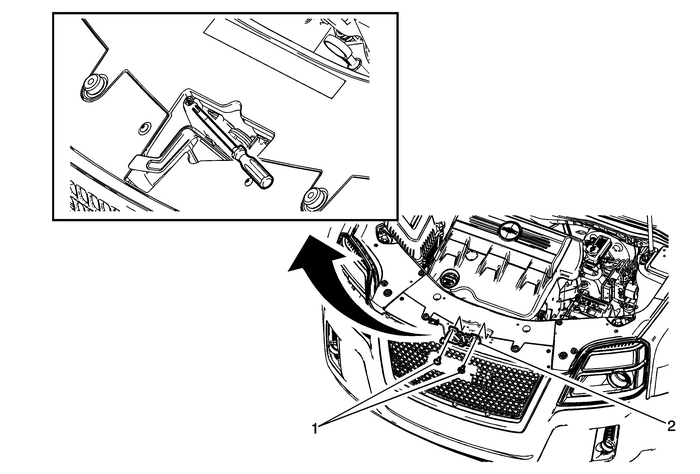

Hood Primary and Secondary Latch Replacement

Callout

Component Name

1

Hood Primary and Secondary Latch Bolt (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureMark location of hood latch to avoid the need to realign after installation.Insert long-handled trim tool into latch opening under plastic panel to disconnectelectrical connector retainer.Reach behind and under the radiator support bar to disconnect the electrical connector.Remove the 2 latch bolts.Tighten

25-Y (18-lb-ft)

2

Hood Primary and Secondary Latch

Procedure

Pull the hood latch out and disconnect the hood release cable.

Hood Primary and Secondary Latch Replacement Panels
Hood Primary and Secondary Latch ReplacementCalloutComponent Name1Hood Primary and Secondary Latch Bolt (Qty:-2)Caution:Refer toFastener Caution.ProcedureMark location of hood latch to avoid need to r ...

Hood Primary Latch Release Cable Handle Replacement Panels
Hood Primary Latch Release Cable Handle ReplacementCalloutComponent Name1Hood Primary Latch Release Cable Handle RetainerProcedurePress the release cable handle inward/downward to release theretainers ...
