Rear Bumper Energy Absorber Replacement (Terrain) Bumpers Rear Bumper

Rear Bumper Energy Absorber Replacement

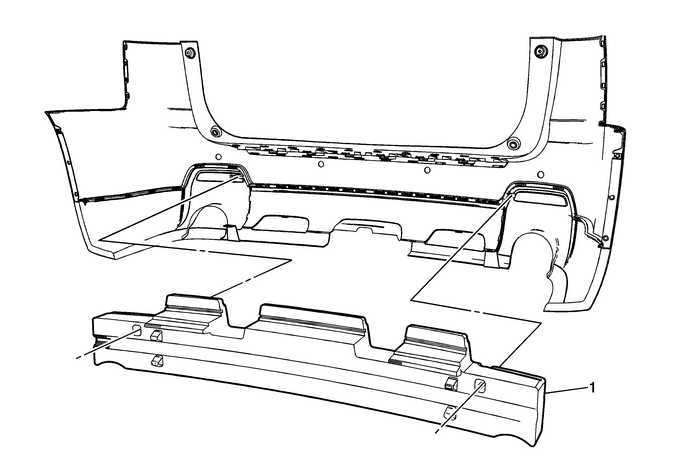

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Energy Absorber

ProcedureRemove the park assist harness if equipped.Disengage the rear energy absorber from the retainers.
