Chevrolet Equinox Service Manual: Mirror Adjustment

Exterior

Mirror Adjustment

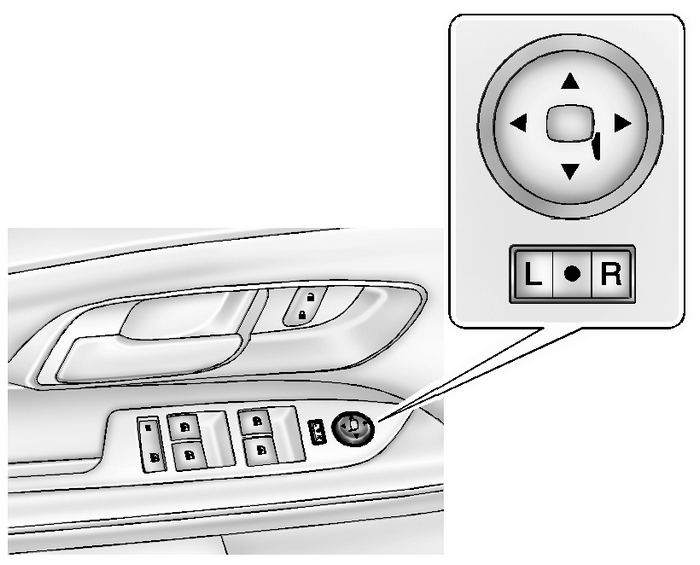

To adjust the mirrors:

Move the selector switch to L (Left) or R (Right) to choose the driver or passengermirror.Press the arrows on the control pad to move each mirror in the desired direction.Return the selector switch to the middle position.

SeePower Mirrors.

Interior

Adjustment

Adjust the rearview mirror to clearly view the area behind the vehicle.

Manual Rearview Mirror

For vehicles with a manual rearview mirror, push the tab forward for daytime use andpull it rearward for nighttime use to avoid the glare of the headlamps from behind.SeeManual Rearview Mirror.

Automatic Dimming Rearview Mirror

Vehicles with an automatic dimming inside rearview mirror automatically reduce theglare of the headlamps from behind. The dimming feature comes on when the vehicleis started. SeeAutomatic Dimming Rearview Mirror.

Adhesives, Fluids, Lubricants, and Sealers
Adhesives, Fluids, Lubricants, and SealersApplicationType of MaterialGM Part NumberUnited StatesCanadaInside Mirror Adhesive KitAdhesive8902132989020893 ...

Fastener Tightening Specifications - Mirrors
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishInside Rearview Mirror2-Y18-lb-inOutside Rearview Mirror Bolts10-Y89-lb-inOutside Rearview Mirror Motor Screws5-Y44-lb-in ...
