Rear Bumper Energy Absorber Replacement Bumpers Rear Bumper

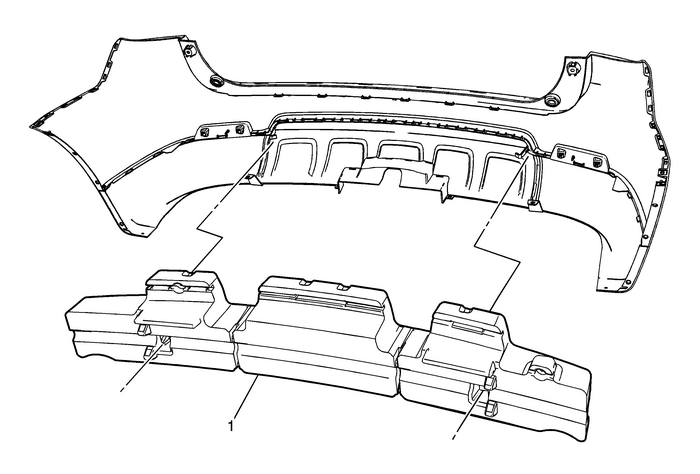

Rear Bumper Energy Absorber Replacement

Callout

Component Name

Preliminary Procedure

Remove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.

1

Rear Bumper Energy Absorber

ProcedureDisconnect the rear park assist harness.Disengage the rear energy absorber from the retainers.
