Radiator Grille Emblem/Nameplate Replacement (Terrain) Front Grille

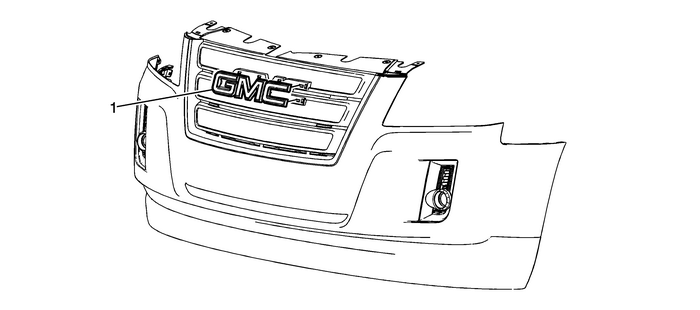

Radiator Grille Emblem/Nameplate Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Radiator Grille Emblem

Procedure

Release the tabs securing the radiator grille emblem to theradiator upper grille assembly.
