Chevrolet Equinox Service Manual: Front Wheel Drive Shaft Seal Replacement - Right Side Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Front Wheel Drive Shaft Seal Replacement - Right Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Right Side Automatic Transmission Unit

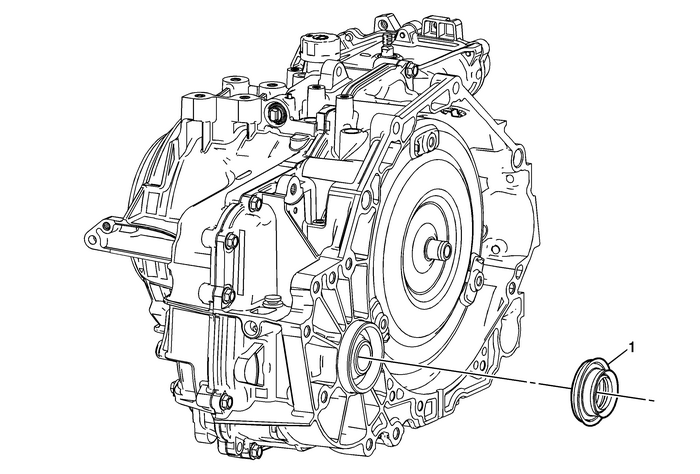

Front Wheel Drive Shaft Seal Replacement - Right Side

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the intermediate drive shaft. Refer toFront Wheel Drive Intermediate Shaft Replacement.

1

Right Front Wheel Drive Shaft Oil Seal

Tip:

For seal removal use J 6125-B Slide Hammer with J 23129 Universal Seal Remover.For seal installation use J 8092 Driver Handle with DT-47790 Seal Installer.Special ToolsDT-47790 Seal InstallerJ 6125-B Slide HammerJ 8092 Driver HandleJ 23129 Universal Seal Remover
Front Wheel Drive Shaft Seal Replacement - Left Side Automatic Transmission Unit
Front Wheel Drive Shaft Seal Replacement - Left SideCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left wheel drive shaft. Refer toFro ...

Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side Automatic Transmission Unit
Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing SideCalloutComponent Name1Torque Converter-–-Front Wheel Drive Shaft Oil Seal AssemblyNote:Use the open side of DT-46629-A seal in ...
