Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side Automatic Transmission Unit

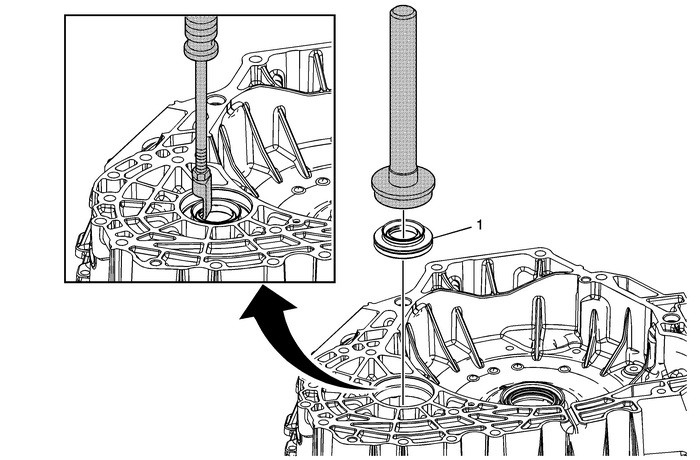

Front Wheel Drive Shaft Seal Replacement - Torque Converter Housing Side

Callout

Component Name

1

Torque Converter-–-Front Wheel Drive Shaft Oil Seal Assembly

Note:Use the open side of DT-46629-A seal installer to avoid seal lip damage and to install the seal to the proper depth.

Special ToolsDT-23129 Universal Seal RemoverDT-46629-A Seal InstallerGE-6125-1B Slide Hammer with AdapterGE-8092 Driver Handle

For equivalent regional tools, refer toSpecial Tools.
