Rear Camber Adjustment Wheels

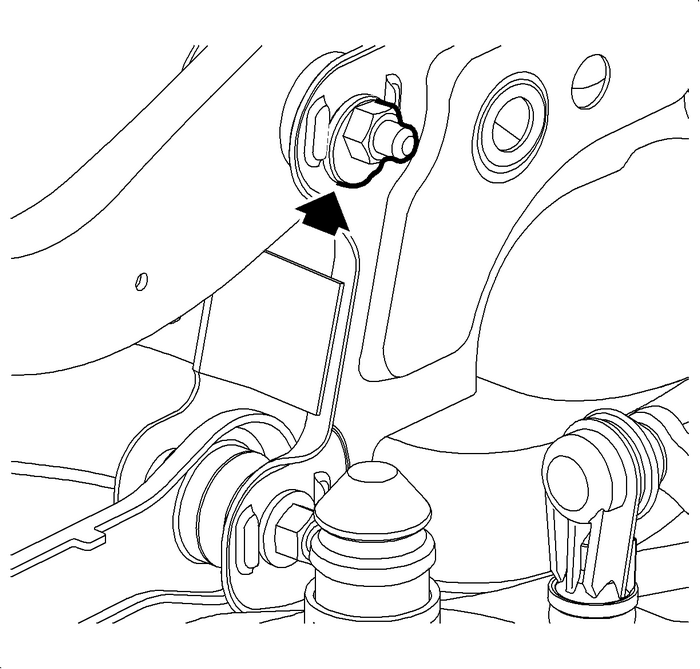

Loosen the upper control arm-to-frame fastener enough toallow movement.

Note:The frame of the vehicle is slotted, turning the cam nut willmove the camber in to the designated location.

Rotate the upper control arm-to-frame fastener in thedirection necessary to the correct the camber measurement.Snug the upper control arm-to-frame fastener, do not tightenat this time.Reinspect the rear camber specifications and adjust asnecessary.

Caution:Refer toFastener Caution.

Hold the nut and tighten the upper control arm-to-frame boltto164-Y(121-lb-ft).Repeat the procedure for the other rear wheel.
Rear Toe Adjustment Wheels
Loosen the suspension adjustment link-to-frame fastenerenough to allow for movement.Note:If experiencing problems in adjusting the rear toe, replacethe existing nut with the service cam nut to elimina ...

Tire Dismounting and Mounting (Tire Inflation) Wheels
Make sure beads of tire are fully seated.Tires are to be inflated to vehicle tire placard spec forproduction assemblies and to placard spec provided with accessorywheels. ...
