Front Wheel Drive Shaft Seal Replacement - Left Side Automatic Transmission Unit

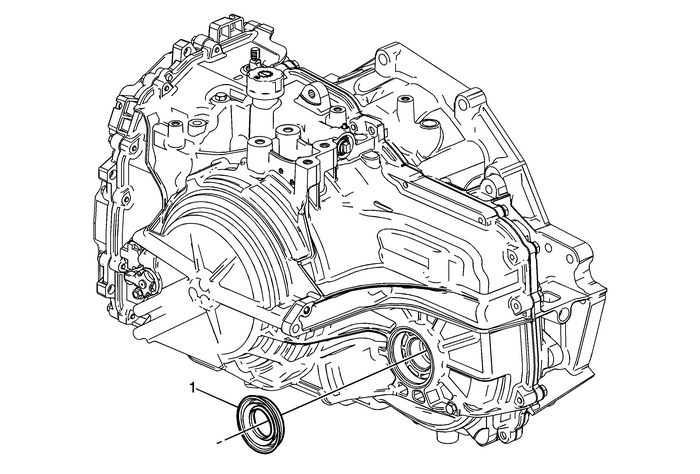

Front Wheel Drive Shaft Seal Replacement - Left Side

Callout

Component Name

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left wheel drive shaft. Refer toFront Wheel Drive Shaft Replacement.

Left Front Wheel Drive Shaft Oil Seal

Tip:

For seal removal use J 6125-B slide hammer with J 23129 universal seal remover.For seal installation use GE-8092 driver handle with DT-47790 seal installer.Special ToolsDT-47790 Seal InstallerGE-8092 Driver HandleJ 6125-B Slide HammerJ 23129 Universal Seal Remover

Front Wheel Drive Shaft Seal Replacement - Case Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Case SideCalloutComponent Name1Front Wheel Drive Shaft Oil SealSpecial ToolsDT-23129Universal Seal RemoverDT-47790Seal InstallerGE-6125-1BSlide HammerGE-8092 ...

Front Wheel Drive Shaft Seal Replacement - Right Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Right SideCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the intermediate drive shaft. Refer to ...
