Front Wheel Drive Shaft Seal Replacement - Case Side Automatic Transmission Unit

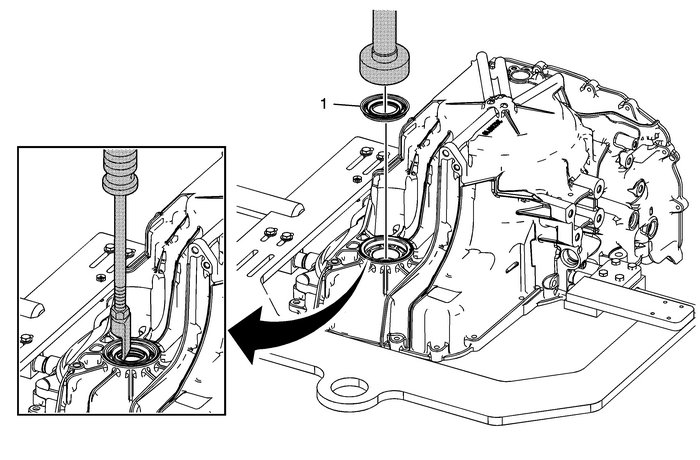

Front Wheel Drive Shaft Seal Replacement - Case Side

Callout

Component Name

1	Front Wheel Drive Shaft Oil Seal Special ToolsDT-23129Universal Seal RemoverDT-47790Seal InstallerGE-6125-1BSlide HammerGE-8092Driver Handle For equivalent regional tools, refer toSpecial Tools.

Front Wheel Drive Shaft Seal Replacement - Case Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Case SideCalloutComponent Name1Front Wheel Drive Shaft Oil Seal AssembleNote:Use the flat side of J-46629-A seal installer to seat the seal to the case surfa ...

Front Wheel Drive Shaft Seal Replacement - Left Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Left SideCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the left wheel drive shaft. Refer toFro ...
