Front Wheel Drive Shaft Seal Replacement - Case Side Automatic Transmission Unit

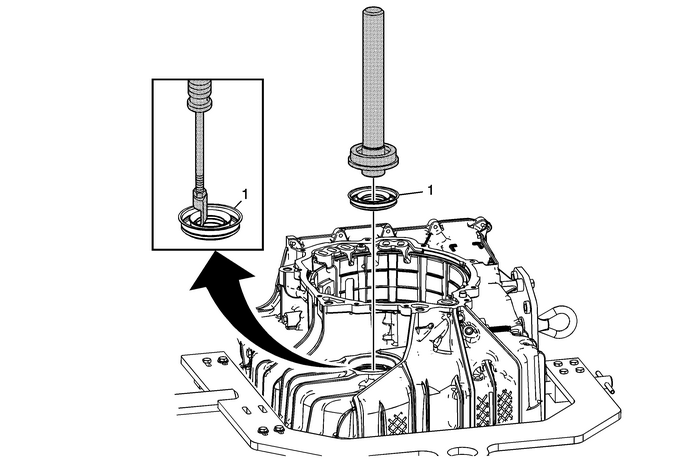

Front Wheel Drive Shaft Seal Replacement - Case Side

Callout

Component Name

1	Front Wheel Drive Shaft Oil Seal Assemble Note:Use the flat side of J-46629-A seal installer to seat the seal to the case surface. Special ToolsDT-23129 Universal Seal RemoverDT-46629-A Seal InstallerGE-6125-1B Slide HammerGE-8092 Driver Handle For equivalent regional tools, refer toSpecial Tools.

Front Wheel Drive Shaft Seal Removal - Torque Converter Housing Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Removal - Torque Converter Housing SideCalloutComponent Name1Front Wheel Drive Shaft Oil Seal AssemblySpecial ToolsDT-23129 Universal Seal RemoverGE-6125-B Slide HammerFor ...

Front Wheel Drive Shaft Seal Replacement - Case Side Automatic Transmission Unit

Front Wheel Drive Shaft Seal Replacement - Case SideCalloutComponent Name1Front Wheel Drive Shaft Oil SealSpecial ToolsDT-23129Universal Seal RemoverDT-47790Seal InstallerGE-6125-1BSlide HammerGE-8092 ...
