Front Wheel Drive Shaft Seal Removal - Torque Converter Housing Side Automatic Transmission Unit

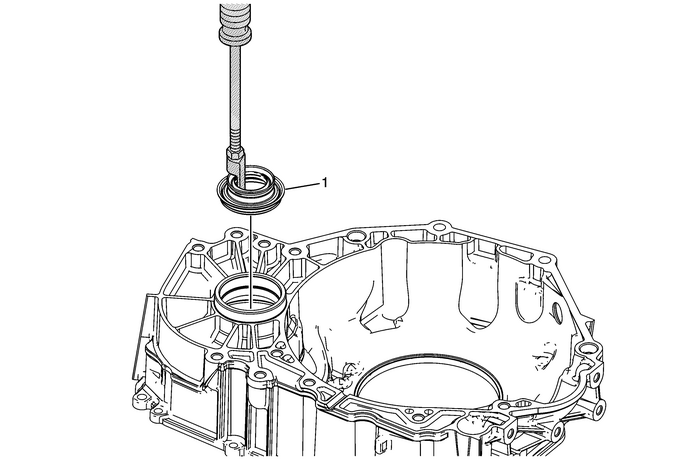

Front Wheel Drive Shaft Seal Removal - Torque Converter Housing Side

Callout

Component Name

1

Front Wheel Drive Shaft Oil Seal Assembly

Special ToolsDT-23129 Universal Seal RemoverGE-6125-B Slide Hammer

For equivalent regional tools, refer toSpecial Tools.
