Chevrolet Equinox Service Manual: Front View Camera Replacement

Chevrolet Equinox Service Manual / Accessories / Driver Assist / Front View Camera Replacement

Front View Camera Replacement

Front View Camera Replacement

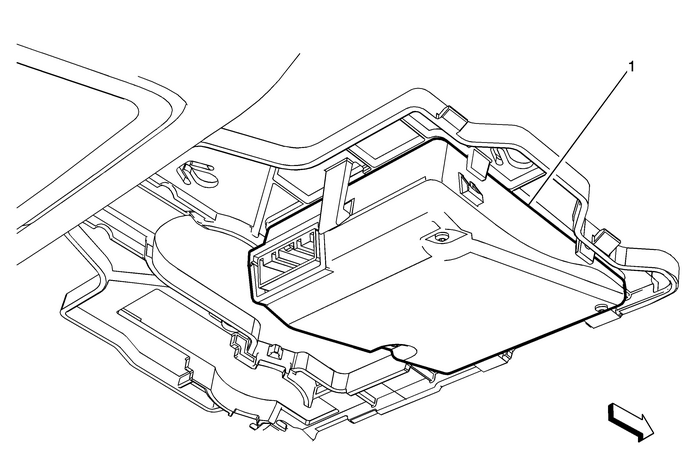

Callout

Component Name

Preliminary Procedure

Remove the inside rearview mirror mount plate cover. Refer toInside Rearview Mirror Mount Plate Cover Replacement.

1

Front View Camera

ProcedureDisconnect the electrical connector.Pull on the upper tab of the camera bracket upward.While holding the camera, slide the two bottom tabs out.After replacement of the front view camera, program the front view camera. Refer toControl Module References.
