Cruise Control Switch Replacement (NP5) Cruise Control

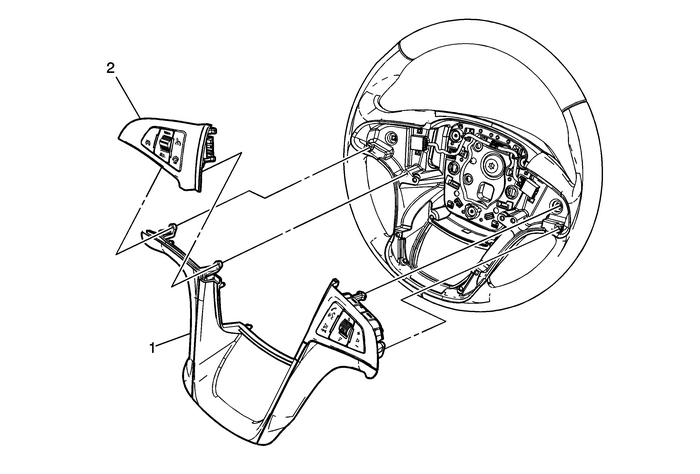

Cruise Control Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module. RefertoAirbag Steering Wheel Module Replacement.

1

Steering Wheel Spoke Cover

2

Cruise Control Switch

ProcedureUse flat bladed tool to release the switch from steeringwheel.Disconnect the electrical connector.
