Information Center Telltale Assembly Replacement

Information Center Telltale Assembly Replacement

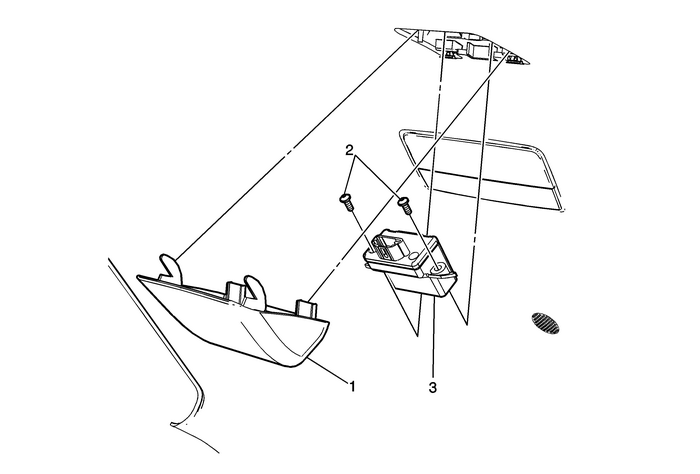

Callout

Component Name

1

Information Center Telltale Bezel

2

Information Center Telltale Assembly Screws(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

3

Information Center Telltale Assembly

Procedure

Disconnect the electrical connector.
