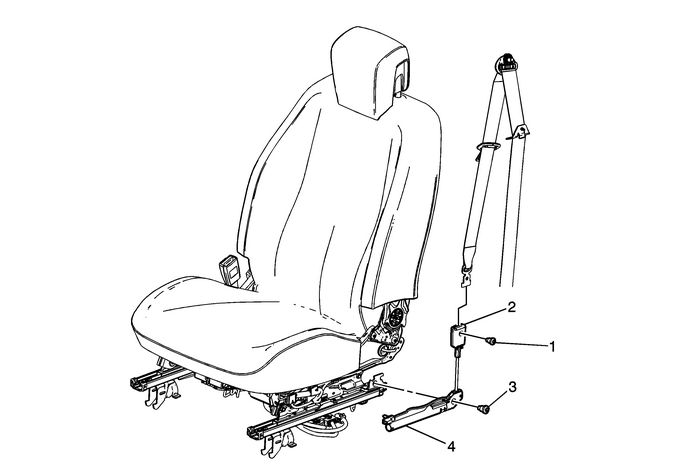

Front Seat Belt Anchor Plate Tensioner Replacement

Callout

Component Name

Warning:Refer toSIR Warning.

Warning:In order to prevent accidental deployment and the risk ofpersonal injury, do not dispose of an undeployed inflatablerestraint seat belt pretensioner as normal shop waste. Undeployedseat belt pretensioners contain substances that could cause severeillness or personal injury if their sealed containers are damagedduring disposal. Use the following deployment procedures to safelydispose of an undeployed seat belt pretensioner. Failure to observethe following disposal methods may be a violation of federal,state, or local laws.

Preliminary ProceduresMove the front seat to the full forward and full up position.Disable the SIR. Refer toSIR Disabling and Enabling.Remove the seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.For pretensioner handling and scrapping, refer toPretensioner Handling and Scrapping.

1

Driver or Passenger Seat Belt Tensioner Fastener

Caution:Refer toFastener Caution.

Tighten

7.5-Y-(66-lb-in)

2

Driver or Passenger Seat Belt Tensioner Cover Assembly

3

Driver or Passenger Seat Belt Tensioner Assembly Fastener

Tighten

45-Y-(33-lb-ft)

4

Driver or Passenger Seat Belt Tensioner Assembly

ProcedureDisconnect the electrical connector.Refer toPretensioner Handling and Scrapping.
