Front Seat Belt Anchor Plate Tensioner Cover Replacement Disc Brakes Brake Calipers

Front Seat Belt Anchor Plate Tensioner Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

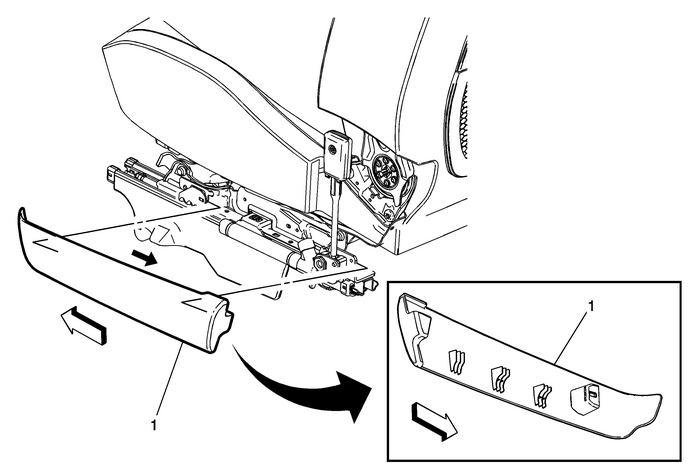

1

Front Seat Belt Anchor Plate Tensioner Cover

ProcedureRaise the seat to the highest seat position.Unclip the seat tensioner wiring harness from the cover.Release the rear tabs on the cover.Slide the finish cover rearward off the tensioner rod and bracket.
Fastener Tightening Specifications - Brakes
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishBrake Hose Fitting Bolt - Front40-Y30-lb-ftBrake Hose Fitting Bolt - Rear52-Y38-lb-ftBrake Hose Bracket Bolt - Front10-Y89-lb-inB ...

Front Seat Belt Anchor Plate Tensioner Replacement Disc Brakes Brake Calipers
Front Seat Belt Anchor Plate Tensioner ReplacementCalloutComponent NameWarning:Refer toSIR Warning.Warning:In order to prevent accidental deployment and the risk ofpersonal injury, do not dispose of a ...
