Chevrolet Equinox Service Manual: 3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / 3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

Table 1: 4-5-6 Clutch Piston Installation
Table 2: 4–5–6 Clutch Dam Installation
Table 3: 4-5-6 Clutch Plates Installation
Table 4: 3-5 Reverse Clutch Plates Installation
Table 5: Piston and Reluctor Wheel Installation
Table 6: 3-5-R and 4-5-6 Clutch Piston Air Check

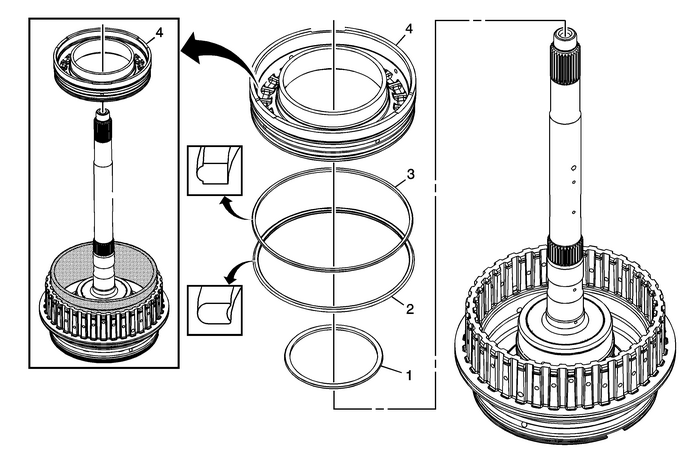

4-5-6 Clutch Piston Installation

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

4-5-6 Clutch Piston Installation

Callout

Component Name

1

4-5-6 Clutch Piston Inner Seal

2

4-5-6 Clutch Piston Outer Seal-(Rounded)

3

4-5-6 Clutch Piston Outer Seal-(Stepped)-(Orange)

4

4-5-6 Clutch Piston

Note:DT-47859 outer seal protector prevents the piston seal lip from damage during installation. Apply a thin coat ofATF to the I.D. of DT-47859 outer seal protector to ease the installation of the piston.

Special Tools

DT-47859 Piston Outer Seal Protector

For equivalent regional tools, refer toSpecial Tools.

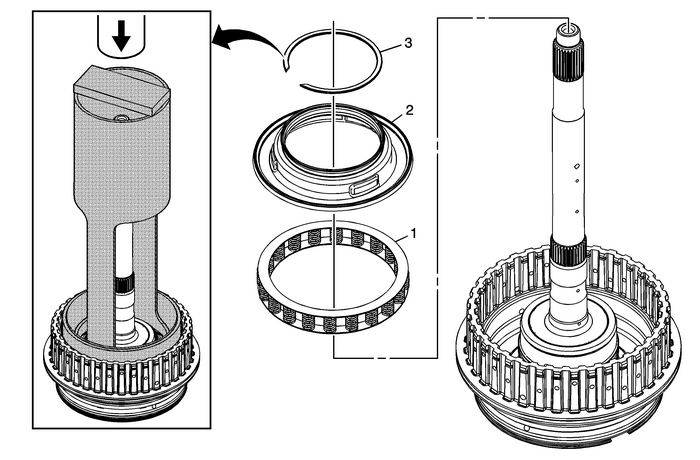

4-5-6 Clutch Dam Installation

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

4–5–6 Clutch Dam Installation

Callout

Component Name

1

4-5-6 Clutch Spring

2

4-5-6 Clutch Piston Fluid Dam

Note:DT-47693-1 which is part of DT-47693 dam protector prevents the dam seal lip from damage during installation. Apply a thin coat of ATFto the I.D. of DT-47693-1 which is part of DT-47693 dam protector to ease the installation of the dam.

Special Tools

DT-47693 Dam Protector

For equivalent regional tools, refer toSpecial Tools.

3

4-5-6 Clutch Dam Retaining Ring

Special ToolsDT-47693-2 Clutch Spring Compressor which is part of DT-47693 Dam ProtectorGE 8059 Snap Ring Pliers-Parallel Jaw or equivalent

For equivalent regional tools, refer toSpecial Tools.

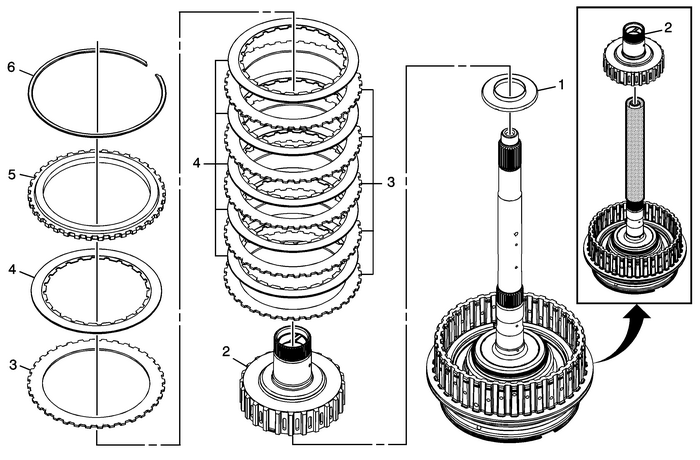

4-5-6 Clutch Plates Installation

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

4-5-6 Clutch Plates Installation

Callout

Component Name

1

4-5-6 Clutch Hub Thrust Bearing

Note:Note location of the orientation lip on bearing. All thrust bearings can only be assembledone way.

2

Reaction Carrier Hub Assembly

Caution:Failure to use DT-48551 could cause damage to thehub assembly bushings which could cause premature transmissionfailure.

Special Tools

DT-48551 Reaction Hub Bushing Protector

For equivalent regional tools, refer toSpecial Tools.

3

4-5-6 Clutch Plate (Qty:-6)

4

4-5-6 Clutch (w/Friction Material) Plate Assembly-(Qty:-6)

5

4-5-6 Clutch Backing Plate

6

4-5-6 Clutch Backing Plate Retaining Ring

Note:Gently push down on the backing plate to get enough clearance between the backingplate and retainer.

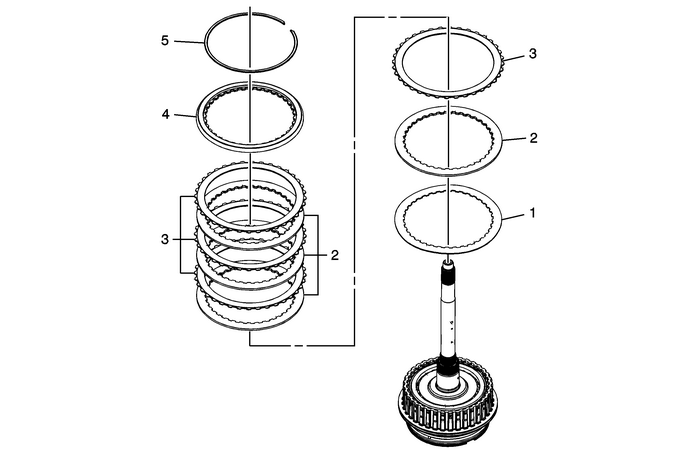

3-5 Reverse Clutch Plates Installation

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

3-5 Reverse Clutch Plates Installation

Callout

Component Name

1

3-5 Reverse Clutch (Waved) Plate

2

3-5 Reverse Clutch Plate (Qty:-4)

3

3-5 Reverse Clutch (w/Friction Material) Plate Assembly-(Qty:-4)

4

3-5 Reverse Clutch Backing Plate

5

3-5 Reverse Clutch Backing Plate Retaining Ring

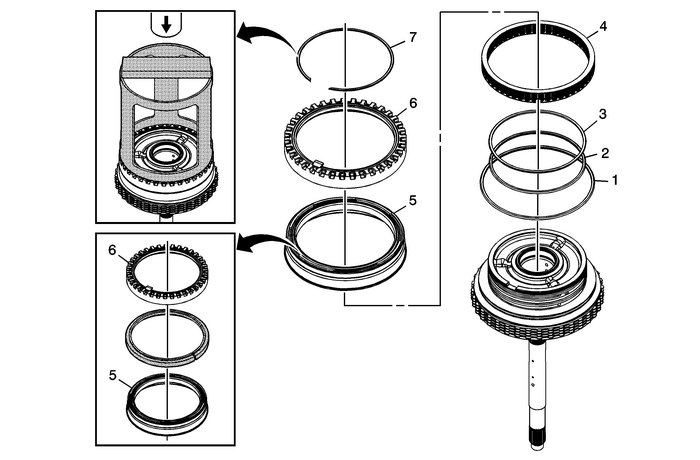

Piston and Reluctor Wheel Installation

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

Piston and Reluctor Wheel Installation

Callout

Component Name

1

3-5 Reverse Clutch Piston Dam Seal

2

3-5 Reverse Clutch Piston Inner Seal-(Black)

Note:Apply a thin coat of ATF to the seal to ease the installation of the piston.

3

3-5 Reverse Clutch Piston Inner Seal-(Orange)

Note:Apply a thin coat of ATF to the seal to ease the installation of the piston.

4

3-5 Reverse Clutch Spring Assembly

5

3-5 Reverse Clutch Piston

Note:

DT-46622 seal protector prevents the piston seal lip from damage during installation. Apply a thin coat ofATF to the I.D. of DT-46622 seal protector to ease the installation of the piston.Install DT-46622 seal protector onto the speed sensor reluctor wheel. Push the 3–5 Reverse Clutch piston into thereluctor wheel until it stops against J-46622 seal protector. Remove DT-46622 seal protector by separating it at theopening.

Special Tools

DT-46622 Piston Seal Protector

For equivalent regional tools, refer toSpecial Tools.

6

A/Trans Input Shaft Speed Sensor Reluctor Wheel

7

A/Trans Input Shaft Speed Sensor Reluctor Wheel Retaining Ring

Caution:Compress the reluctor wheel just enough to clear the retainerring groove. Over compressing the reluctor wheel will break thealignment tab and the clutch housing.

Special Tools

DT-47694 Piston Spring Compressor

For equivalent regional tools, refer toSpecial Tools.

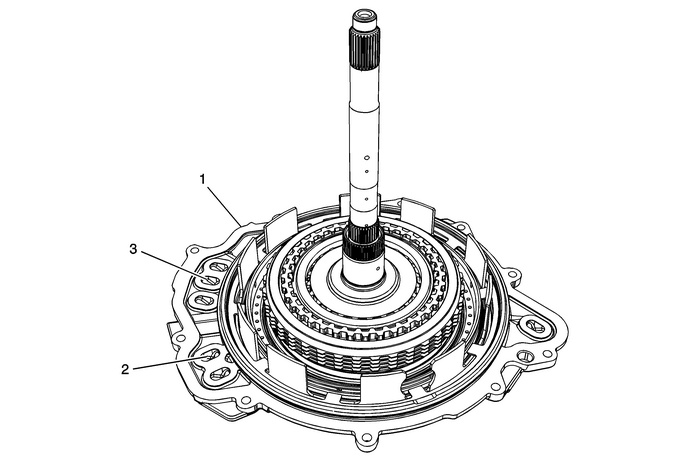

3-5-R and 4-5-6 Clutch Piston Air Check

3-5-Reverse and 4-5-6 Clutch Housing Assemble Automatic Transmission Unit

3-5-R and 4-5-6 Clutch Piston Air Check

Callout

Component Name

1

Case Cover Assembly

Note:The fluid seal rings should be in place and not damaged.

2

4-5-6 Clutch Feed Fluid Passage

Caution:Regulate the air pressure to 40-psi maximum. Highpressure could cause the piston to over travel and damage thepiston seals.

ProcedureApply shop air to the 4-5-6 clutch feed passage.Observe the 4-5-6 piston movement.

Note:Minimal piston movement and excessive air leaking could indicate damage to the 4-5-6piston seals or improper assembly.

3

3-5 Rev Clutch Feed Fluid Passage

Caution:Regulate the air pressure to 40-psi maximum. Highpressure could cause the piston to over travel and damage thepiston seals.

ProcedureApply shop air to the 3-5-Rev clutch feed passage.Observe the 3-5-Rev piston movement.

Note:Minimal piston movement and excessive air leaking could indicate damage to the 3-5-Revpiston seals or improper assembly.
