Chevrolet Equinox Service Manual: Low and Reverse and 1-2-3-4 Clutch Housing Assemble Automatic Transmission Unit Automatic Clutches

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Low and Reverse and 1-2-3-4 Clutch Housing Assemble Automatic Transmission Unit Automatic Clutches

Table 1: 1-2-3-4 Clutch Piston Installation
Table 2: Low and Reverse Clutch Piston Installation
1-2-3-4 Clutch Piston Installation

Low and Reverse and 1-2-3-4 Clutch Housing Assemble Automatic Transmission Unit Automatic Clutches

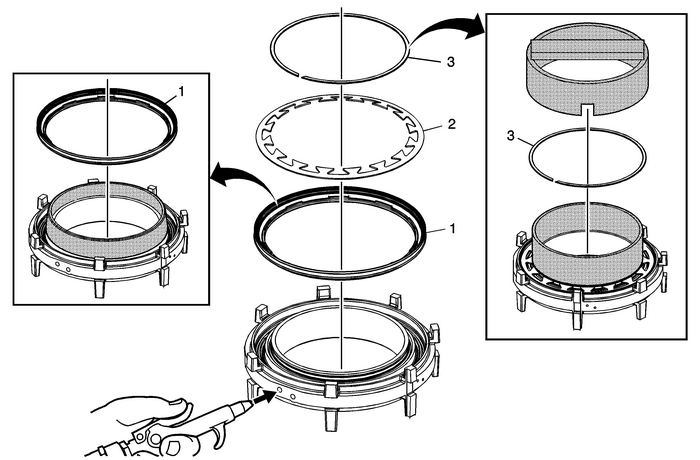

1-2-3-4 Clutch Piston Installation

Callout

Component Name

1

1-2-3-4 Clutch Piston

Note:DT-47798 protector prevents the piston seal lip from damage during installation. Apply a thin coat ofATF to the ID of DT-47798 protector to ease the installation of the piston.

Special Tools

DT-47798 Seal Protector

2

1-2-3-4 Clutch Spring

3

1-2-3-4 Clutch Spring Retainer

Caution:Regulate the air pressure to 276-kPa(40-psi) maximum. High pressure could cause the pistonto over travel and damage the piston seals.

ProcedurePlace the retainer onto DT-47799-1 which is part of DT-47799 compressor. Compressing the spring using DT-47799-2 which is part of DT-47799 compressor, will install the retainer into the retainer groove.Apply shop air to the clutch fluid feed hole in the clutch housing to verify properpiston operation.

Special Tools

DT-47799 Clutch Piston Spring Compressor

Low and Reverse Clutch Piston Installation

Low and Reverse and 1-2-3-4 Clutch Housing Assemble Automatic Transmission Unit Automatic Clutches

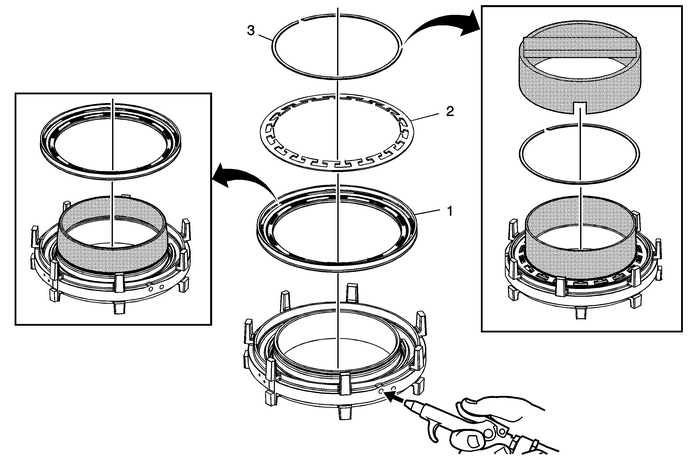

Low and Reverse Clutch Piston Installation

Callout

Component Name

1

Low and Reverse Clutch Piston

Note:DT-47807 protector prevents the piston seal lip from damage during installation. Apply a thin coat ofATF to the ID of DT-47807 protector to ease the installation of the piston.

Special Tools

DT-47807 Clutch Piston Seal Protector

2

Low and Reverse Clutch Spring

3

Low and Reverse Clutch Spring Retainer

Caution:Regulate the air pressure to 276-kPa(40-psi) maximum. High pressure could cause the pistonto over travel and damage the piston seals.

ProcedurePlace the retainer onto DT-47794-1 which is part of DT-47794 compressor. Compressing the spring using DT-47794-2 which is part of DT-47794 compressor, will install the retainer into the retainer groove.Apply shop air to the clutch fluid feed hole in the clutch housing to verify properpiston operation.

Special Tools

DT-47794 Spring Compressor
