Chevrolet Equinox Service Manual: Transmission Mount Replacement - Left Side Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Transmission Mount Replacement - Left Side Automatic Transmission Unit

Removal ProcedureRemove the battery tray. Refer toBattery Tray Replacement.Remove the underhood electrical center.Support the engine and transmission.

Transmission Mount Replacement - Left Side Automatic Transmission Unit

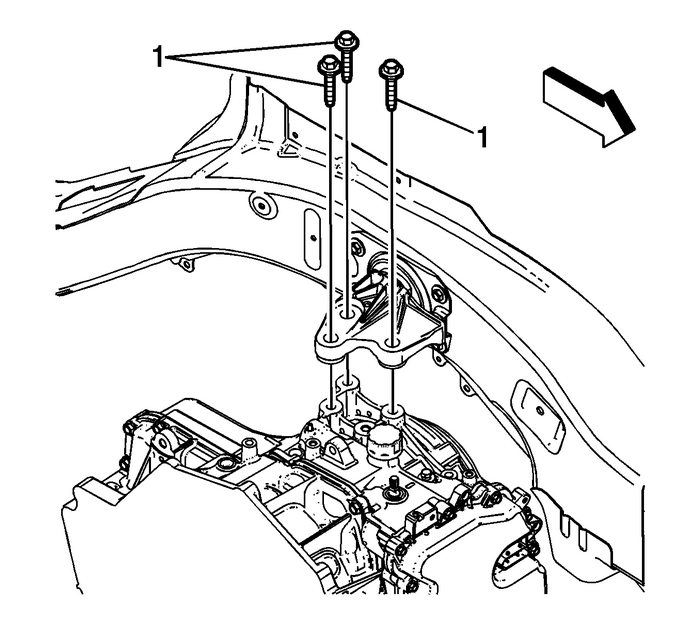

Remove the left transmission mount to transmissionbolts-(1).

Transmission Mount Replacement - Left Side Automatic Transmission Unit

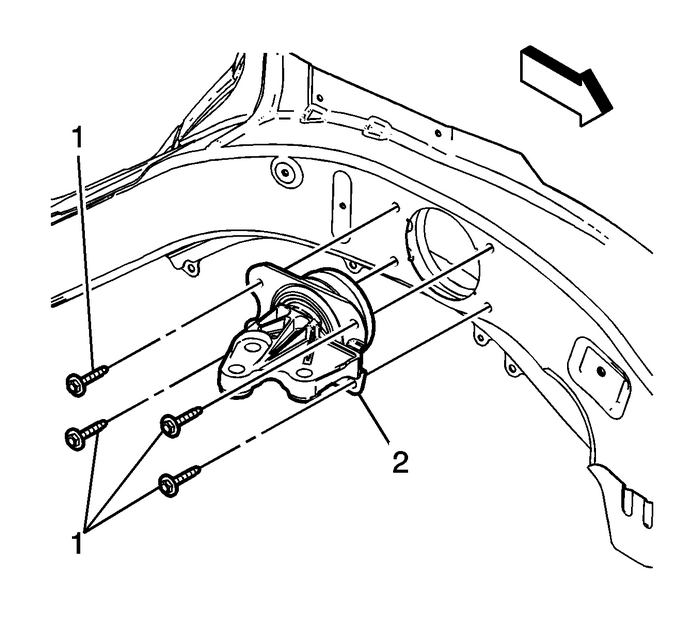

Remove the left transmission mount to frame railbolts-(1).Lower the transmission enough to provide clearance for theleft transmission mount.Remove the left transmission mount-(2).Installation Procedure

Transmission Mount Replacement - Left Side Automatic Transmission Unit

Install the left transmission mount-(2).

Caution:Refer toFastener Caution.

Install the left transmission mount to frame railbolts-(1) and tighten to27-Y(20-lb-ft).Raise the transmission until the transmission contacts theleft transmission mount.

Transmission Mount Replacement - Left Side Automatic Transmission Unit

Install the left transmission mount to transmissionbolts-(1) and tighten to50-Y(37-lb-ft).Remove the engine and transmission support.Install the battery tray. Refer toBattery Tray Replacement.Install the underhood electrical center.
