Output Speed Sensor Replacement Automatic Transmission Unit

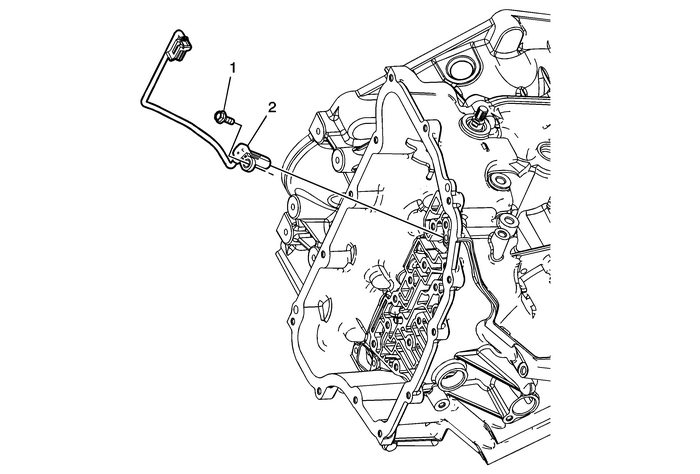

Output Speed Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the control solenoid valve and transmission control module assembly. RefertoControl Valve Body Replacement.

Output Speed Sensor Bolt M6 x 18

Caution:Refer toFastener Caution.

Procedure

Tighten in specified sequence.

Tighten

9-Y (80-lb-in)

Output Speed Sensor

Procedure

Perform the transmission adaptive values learn procedure. Refer toTransmission Adaptive Values Learn.
