Output Carrier Cleaning and Inspection Automatic Transmission Unit

Output Carrier Cleaning and Inspection

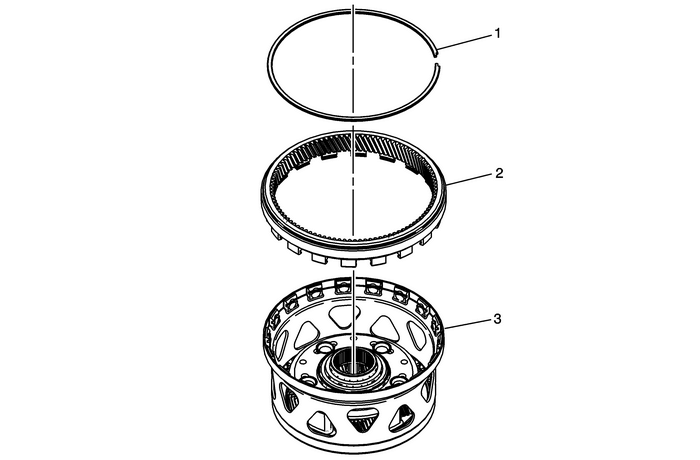

Callout

Component Name

Preliminary Procedures

Clean and Inspect the carrier as an assembly. If wear ordamage is found disassemble to replace the affectedcomponent.

1

Reaction Internal Gear Retaining Ring

2

Reaction Carrier Internal Gear

3

Output Carrier Assembly
