Chevrolet Equinox Service Manual: Input Speed Sensor Replacement Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Input Speed Sensor Replacement Automatic Transmission Unit

Removal ProcedureRemove the control solenoid valve and transmission control module assembly. RefertoControl Solenoid Valve and Transmission Control Module Assembly Replacement.

Input Speed Sensor Replacement Automatic Transmission Unit

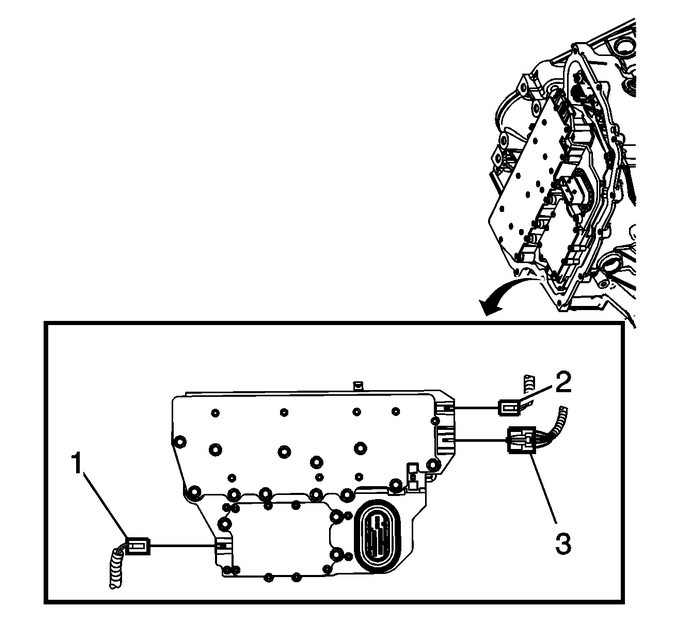

Disconnect the input speed sensor electrical connector-(1).

Input Speed Sensor Replacement Automatic Transmission Unit

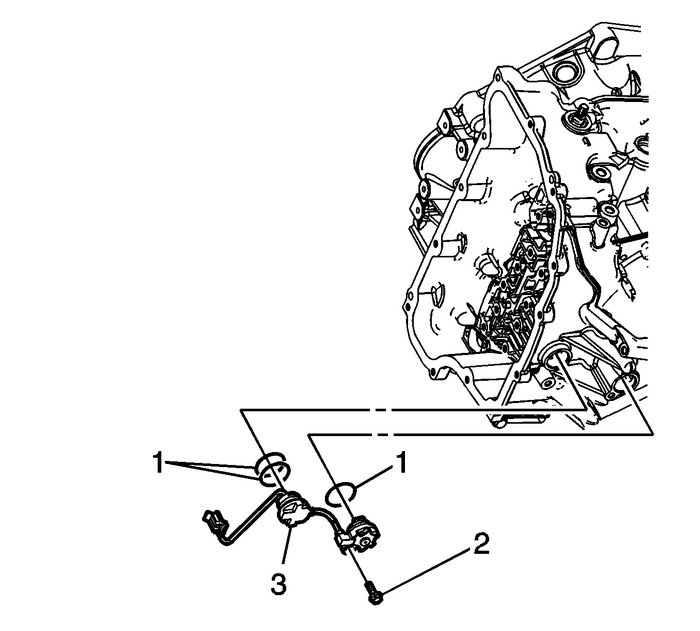

Remove the input speed sensor bolt-(2) M6 x 23.Remove the input speed sensor-(3).Remove the 3-input speed sensor seals-(1).Installation Procedure

Input Speed Sensor Replacement Automatic Transmission Unit

Install the 3-input speed sensor seals-(1).Install the input speed sensor-(3).

Caution:Refer toFastener Caution.

Install the input speed sensor bolt-(2) M6 x 23 and tighten to 9-Y (80-lb-in).

Input Speed Sensor Replacement Automatic Transmission Unit

Connect the input speed sensor electrical connector-(1).Install the control solenoid valve and transmission control module assembly. RefertoControl Solenoid Valve and Transmission Control Module Assembly Replacement.Perform the transmission adaptive values learn procedure. Refer toTransmission Adaptive Values Learn.
