Front Floor Console Rear Cover Replacement Consoles Center Console

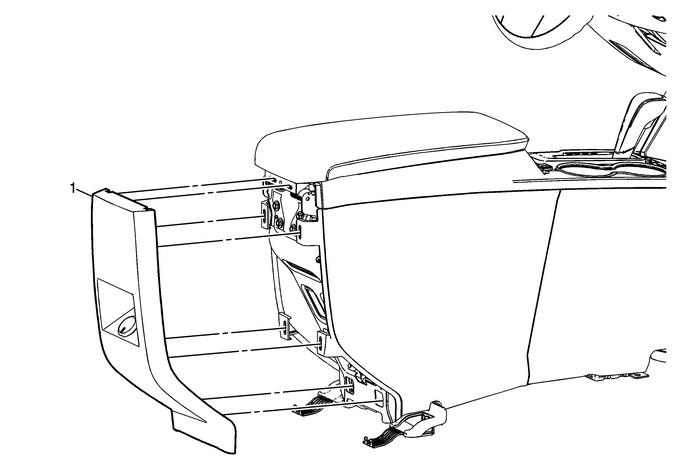

Front Floor Console Rear Cover Replacement

Callout

Component Name

1

Front Floor Console Rear Cover

ProceduresGrasp the console rear cover and pull it rearward away fromthe console assembly.Disconnect the electrical connections, if applicable.When replacing the front floor console rear cover, transferall necessary components.
